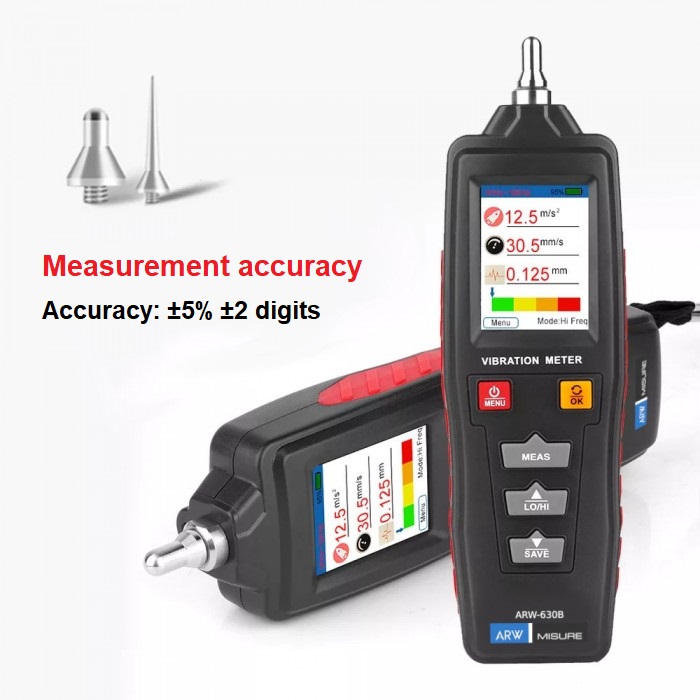

Vibrometer accelerometer ARW-630B

The ARW-630B Accelerometer Virbometer is a compact and handy instrument designed for the preventive maintenance sector to establish and prevent any anomalies on machinery and engines of other types. It is equipped with a large backlit color display with simultaneous display of the three parameters (acceleration, velocity, displacement) and complies with ISO 10816-1.

‹ ›

Product Code: 220123116
Availability: In Stock

Equipped with a large backlit color display with simultaneous display of the three parameters (acceleration, speed, displacement)
Complies with ISO 10816-1 with setting of the 4 reference classes from the menu

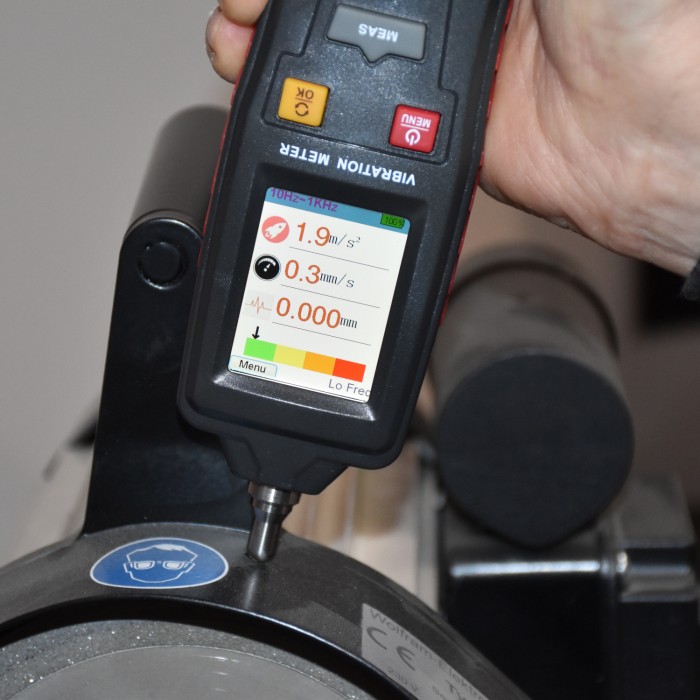

Rotation of the display depending on the measurement orientation (360° rotation)
Internal memory for archiving and saving data in 7 groups of measurements
Double measurement button to simplify the measurement in a vertical position and a front LED to illuminate the measurement area

Further information

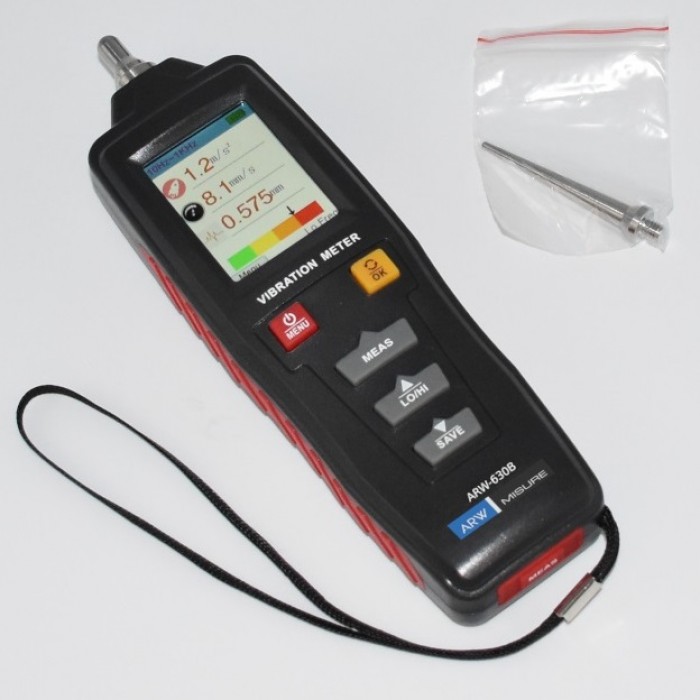

Digital vibration meter ARW-630B

The ARW-630B vibration meter is based on the piezoelectric effect which converts the vibration signal into an electrical signal, then, by analyzing the input signal, the displacement, speed and acceleration values are detected. Equipped with graphic display and data memory with direct visualization on the display.

The ARW-630B is suitable for vibration measurement of mechanical equipment, especially for rotary and reciprocating machines. It is widely used in machinery manufacturing, electrometallurgy, engineering and aerospace.

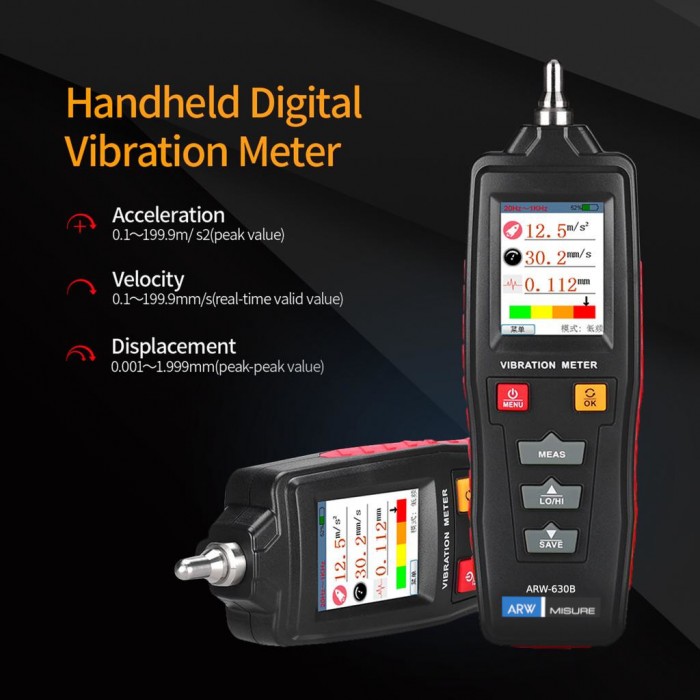

Main features Digital vibrometer ARW-630B

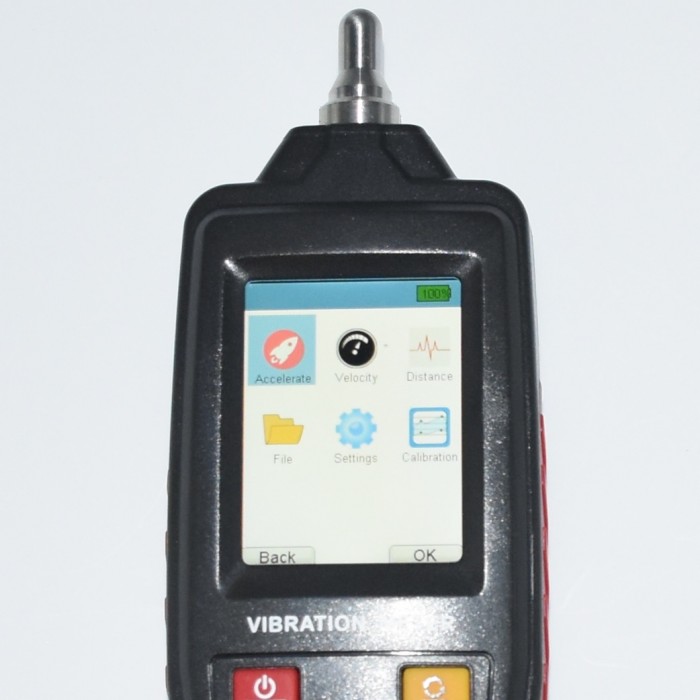

Large backlit color display with simultaneous display of the three parameters (acceleration, velocity, displacement).
Measurement of acceleration, velocoty and displacement, with graphic display in the three different modes

Surveys according to ISO 10816-1 standard with selection of the 4 reference classes
Internal memory for filing and saving data in 7 groups of measurements (visible only on the instrument)
Equipped with a front LED to illuminate the measurement area in case of poor lighting
Display adaptation mode according to measurement orientation
Double measurement button to facilitate measurement in vertical position
Battery charge level indicator on display
Selection of high and low frequency measurement range: High frequency (1KHz,...l0KHz)/ low frequency (20Hz-lKHz).
Complies with ISO 10816-1 which establishes the general conditions and procedures for vibration measurement and evaluation. The general evaluation criteria have been provided mainly to ensure reliable, safe and long-term operation of the machine, minimizing the negative effects on the associated equipment (Setting of the 4 reference classes from the menu).

Applicazions Vibrometer ARW-630B

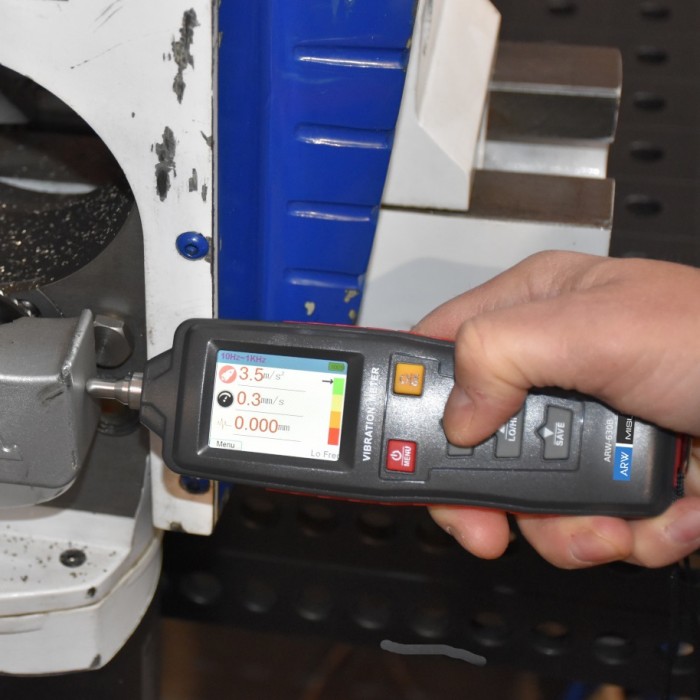

Electromechanical sector: plant control and maintenance to identify any defects and anomalies of machines, engines and plants.
Iron and steel: all kinds of rotating equipment in steel and rolling mills.
Electrometallurgical
Aerospace industry

Technical specifications Vibration meter ARW-630B
Technical parameters	Technical indicators
Sensor	Piezoelectric ceramic accelerometer sensor (shear type)
Measuring Range:
Acceleration	0.1~199.9 m/s2
Velocity	0.1~199.9mm/s
Displacement	0.001~1.999mm
Precision
Vibration shifts	0.01~0.02mm, ≤±10%. ≥0.02mm,≤±5%
Vibration speed	0~2.0mm/s, ≤±10%.≥2.0mm/s,≤±5%
Vibration acceleration	0~2.0m/s2, ≤±10%.≥2.0m/s2,≤±5%
Frequency range:
Acceleration	Hight frequency： 1 KHz ～ 15 KHz (HI) Low frequency: 20 Hz ~ 1 KHz (LO)
Speed	20Hz～1KHz (LO)
Displacement	20Hz～1KHz (LO)
Display LCD	Color display
Data display interval	2 seconds (1 second in single parameter measurement)
Maximum group number for data storage	5 gr(Files G1 - G5)
Power supply	1.5V AAA battery*2
Operating temperature	0~40℃
Operating humidity	30~90%RH
Dimensions	180x54x30mm
Weight	250G (with batteries)
