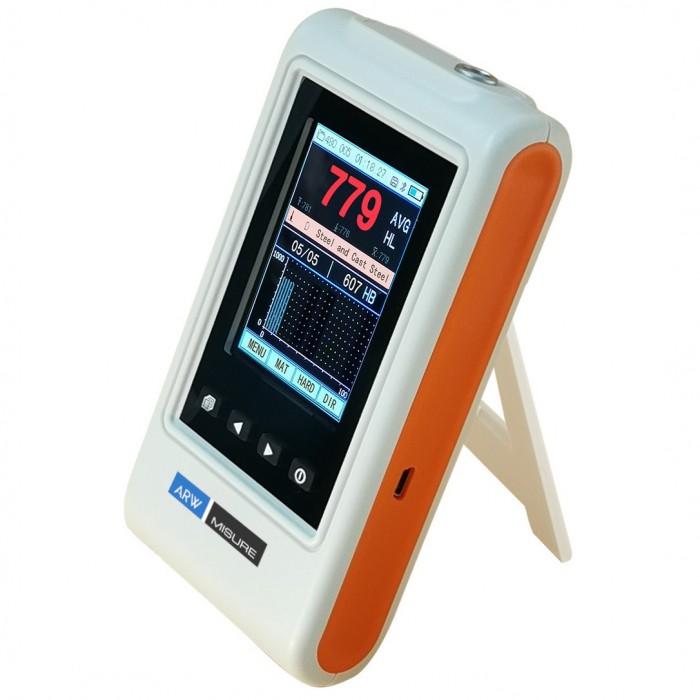

Durometer for metals ARW-1000

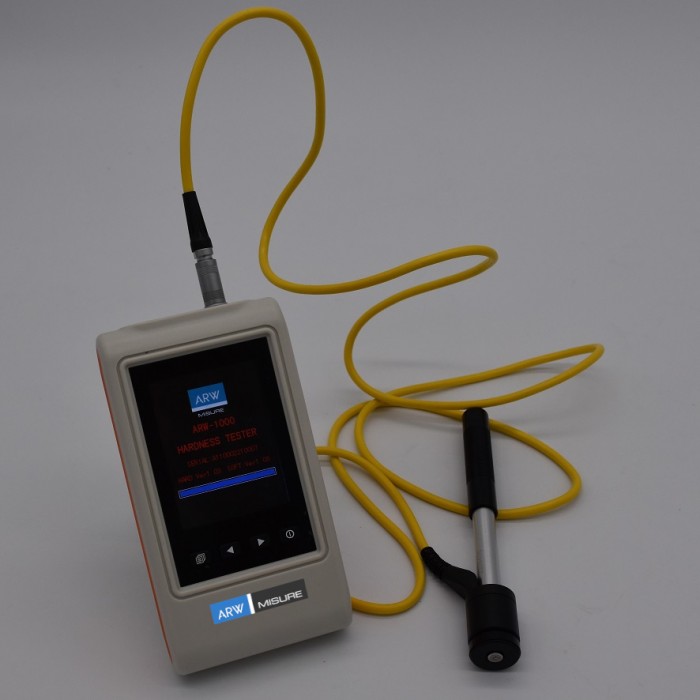

Impact hardness tester for metals ARW-1000

The ARW-1000 digital hardness tester is a compact and handy instrument able to quickly and accurately measure the hardness of any metallic material. It uses the rebound measurement method (Leeb test) and combined with the impact probe it has the possibility of detecting the hardness on numerous types of material and converting them on the main hardness scales (HRB, HRC, HV, HB, HS, HL).
The instrument features a compact structure, portable and easy to operate, equipped with a large 2.8" 320*240 pixel TFT color display with rich information, simple and complete setting and configuration menu, large memory function (max 510 files).

Main features Digital Portable Durometer ARW-1000

• Rebound measurement method (Leeb Test) and standard “D” type impact probe included.
• Equipped with a large 2.8" color TFT display, 320*240 pixels with numerous functions and parameters.
• Simple and complete setup and configuration menu.
• Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
• Large memory with 510 files, 47-341 groups of data depending on the setting of the number of beats for the average value calculation (selectable setting from 1 to 32 beats). The higher the data value set for the calculation of the average value, the more the number of data SETs saved in the File will be reduced. Saved data: single measurement value, average value, measurement date, impact direction, times, material, hardness system and other information.
• It can be equipped with 7 different impact devices for different applications (optional). It does not need to be recalibrated during replacement, and the type of probe can be identified automatically.
• The instrument is built with large capacity Li-ion rechargeable battery and charge control circuit which enables it to work for a very long time.
• Equipped with pre-settable alarms, the upper and lower limits of the hardness value can be set with immediate indication and the automatic alarm will sound when the set hardness value is exceeded.
• Software program for data transfer to PC with Excell file creation

ARW-1000 HARDNESS TESTER SOFTWARE PROGRAM

Applications ARW-1000 portable digital rebound hardness tester

• Machinery and systems sector for hardness analysis on mechanical assembly and installation parts.
• Mechanical sector for measuring the hardness of metals in the forging, machining and treatment phases in order to guarantee a correct result in compliance with the required specifications.
• Mold production sector.
• Carpenteria metallica per il controllo delle differenti fasi di lavorazione.
• NDT for preventive analysis of load-bearing structures and failure analysis.
• Narrow test space where the workpiece is installed.
• Identification of the metallic material.
• Monitoring and maintenance of metal structures in general.
• Control and verification of metal hardening heat treatments.
• Rapid testing of wide-range and multi-point measuring positions for heavy workpieces.

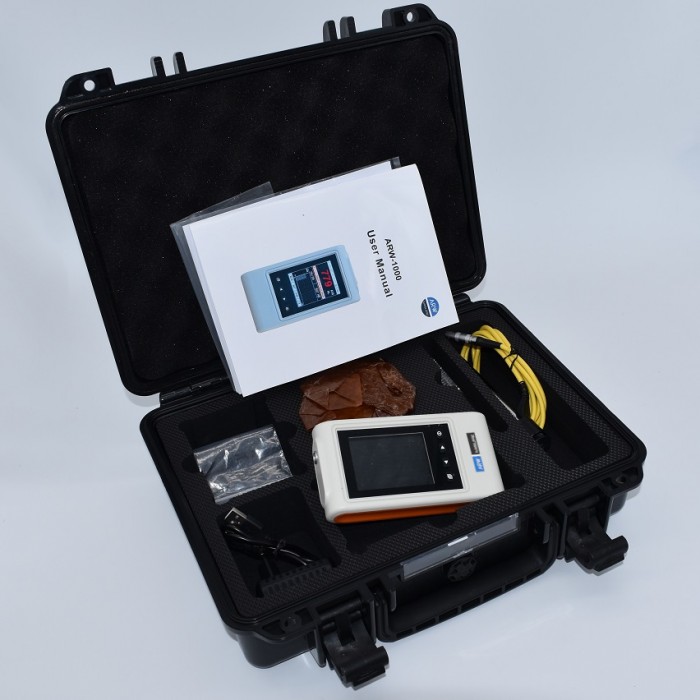

Standard delivery Durometer for metals ARW-1000

• Main unit
• Impact Device type D
• Small support ring
• Nylon probe cleaning brush
• Standard calibration block
• Charging power supply
• USB communication cable for connection to PC and charging

FREE DOWNLOADABLE SOFTWARE PROGRAM (DOWNLOAD)
