Ultrasonic Thickness Gauge ARW-1930

Ultrasonic Thickness Gauge ARW-1930

This digital thickness gauge for materials uses the ultrasonic operating principle to measure the thickness of various types of metals and more, it is able to detect the thickness on metals such as steel, cast iron, aluminum, copper, brass, etc ... and non-metallic such as plastic, glass, ceramic and more. In the case of non-metallic materials it is advisable to first check the possibility and the range of measurement according to your needs after contacting our technical staff. The measuring range depends on the type of material and the probe used, the support starts quickly and easily from one side only without the need for feedback on the opposite side.

Main features Digital Thickness ARW-1930

• High quality and precision with 0.01 mm resolution.
• Two Standard probe included, 5MHz diameter 10mm for measurements from 0.80 to 250mm (on steel base).
• Integrated probe calibration block.
• Double selectable measurement unit.
• Equipped with double 5MHz measuring probe (90 ° and Straight).
• Icon showing the pairing status.
• Ultrasound speed measurement function with adjustment of the value according to the thickness and recognition of the material; possibility of self-calibration of the speed according to the thickness.
• Equipped with an interface cable for data transfer and management to PC
• Power off function after 3 min. of inactivity.

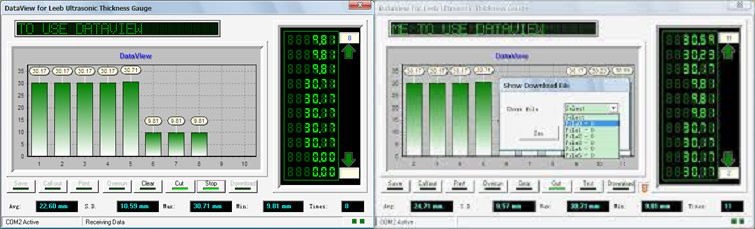

• DataView Software ARW-1930 Ultrasonic Thickness Gauge
• DOWNLOAD Driver CP210x
