Optical Mechanical digital tachometer ARW AT-8

Home » Optical Mechanical digital tachometer ARW AT-8

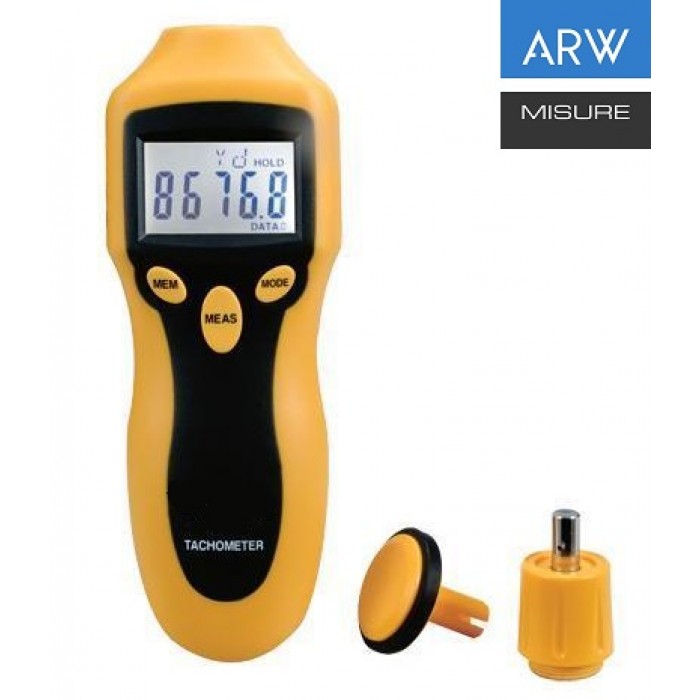

The ARW AT-8 Tachometer equipped with dual measurement technology, optical and mechanical system, is used to measure rotation speed RPM, rpm and linear speed m/min. It is equipped with a laser pointer for centering, a 5-digit backlit LCD display and has a wide measurement range up to 20,000RPM (rpm).
Optical Mechanical digital tachometer ARW AT-8
Product Code: 220121480
Availability: In Stock
  • Large 5-digit backlit LCD display
  • Wide measuring range up to 20.000 RPM (g/min).
  • Double measurement technology, optical and mechanical system
  • Built-in laser pointer
  • 40 reading memories

Further information

Digital Tachometer ARW AT-8

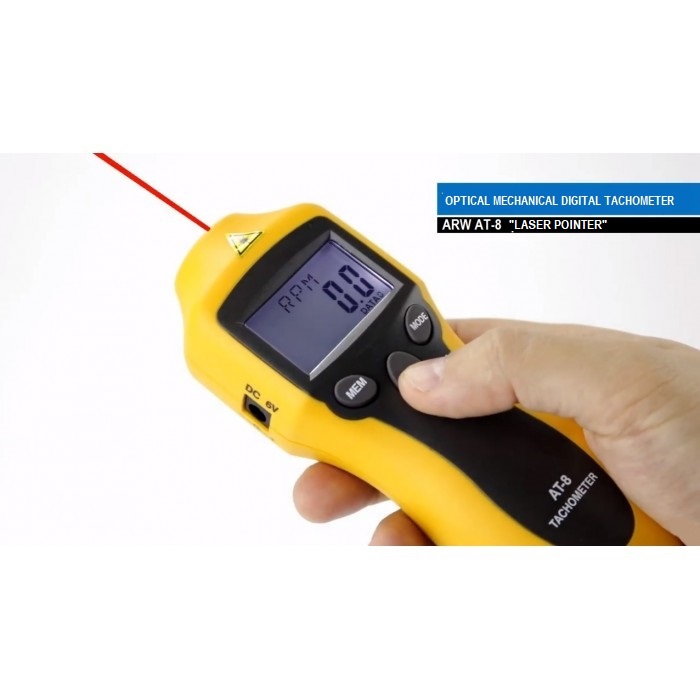

The ARW AT-08 tachometer is a dual technology portable tachometer with both optical and mechanical reading with the use of an interlocking system equipped with a tip for measuring the speed of rotation "RPM" rotations per minute and a wheel for the linear speed, meters per minute. In optical mode, this speedometer is equipped with a laser pointer to facilitate the centering of the object to be measured.





Main features Digital Tachometer ARW AT-8

  • Equipped with dual measurement technology, optical and mechanical system.

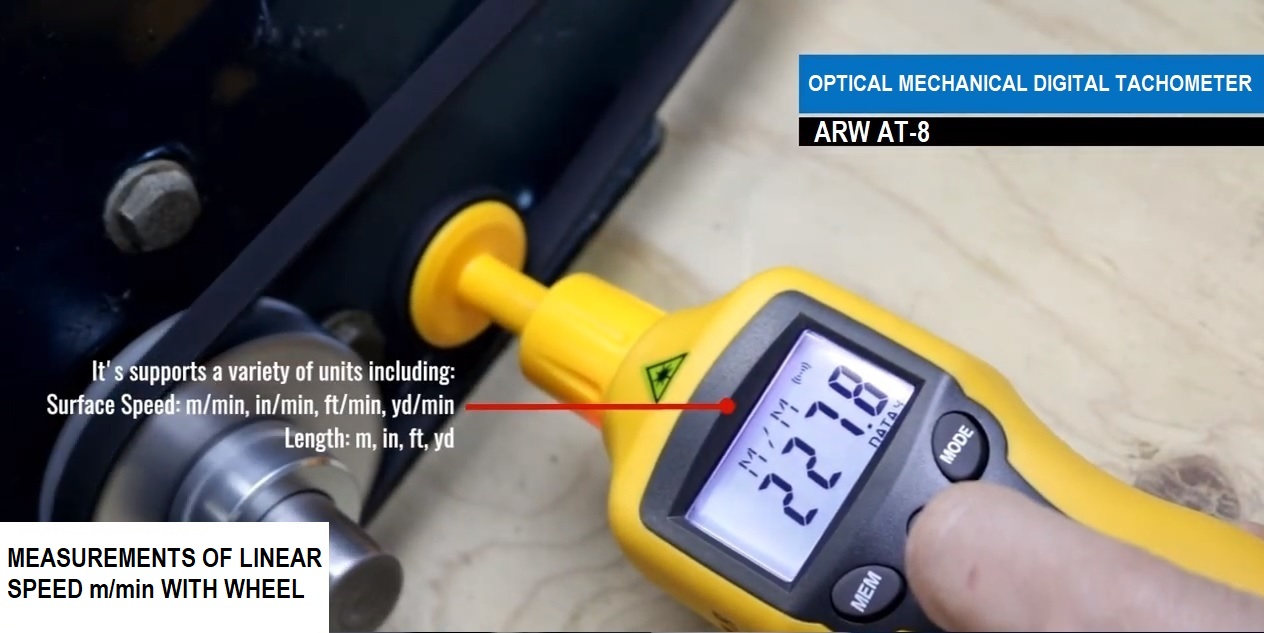

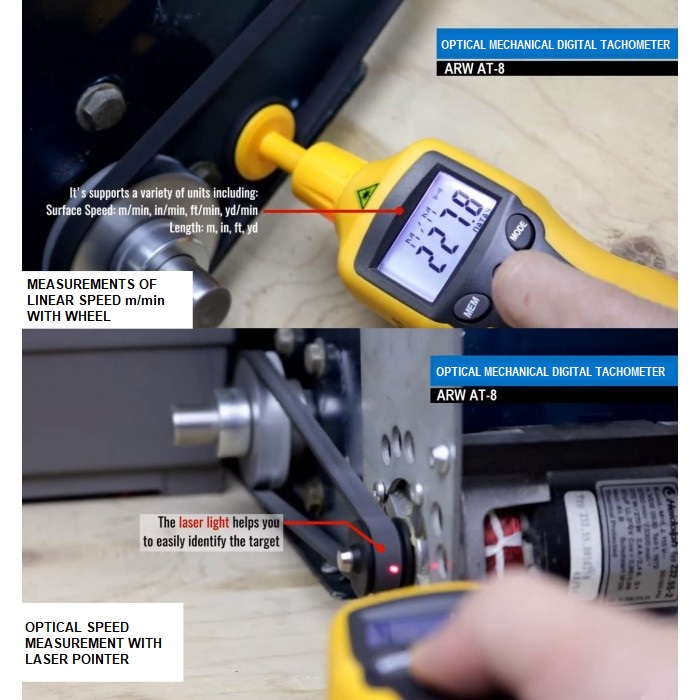

  • Measurement of linear speed "m/min" with wheel provided.

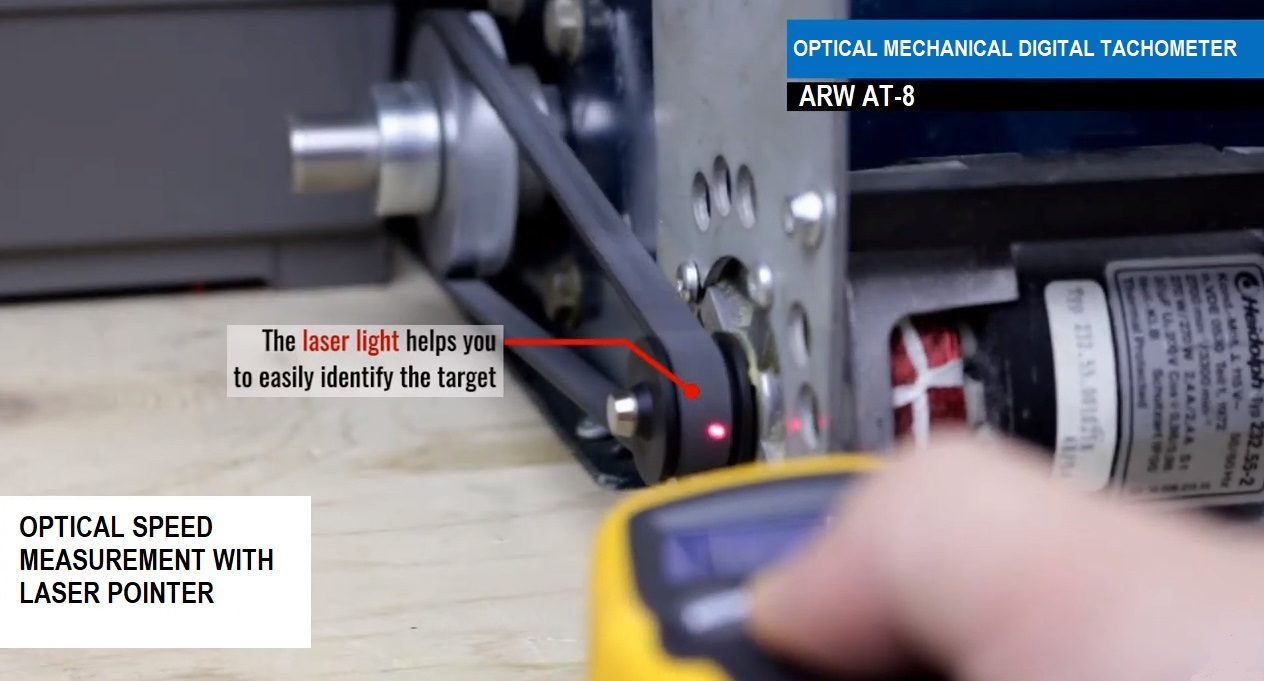

  • Rotation speed measurement with optical system equipped with a laser pointer for centering (reflective strips supplied in the kit).

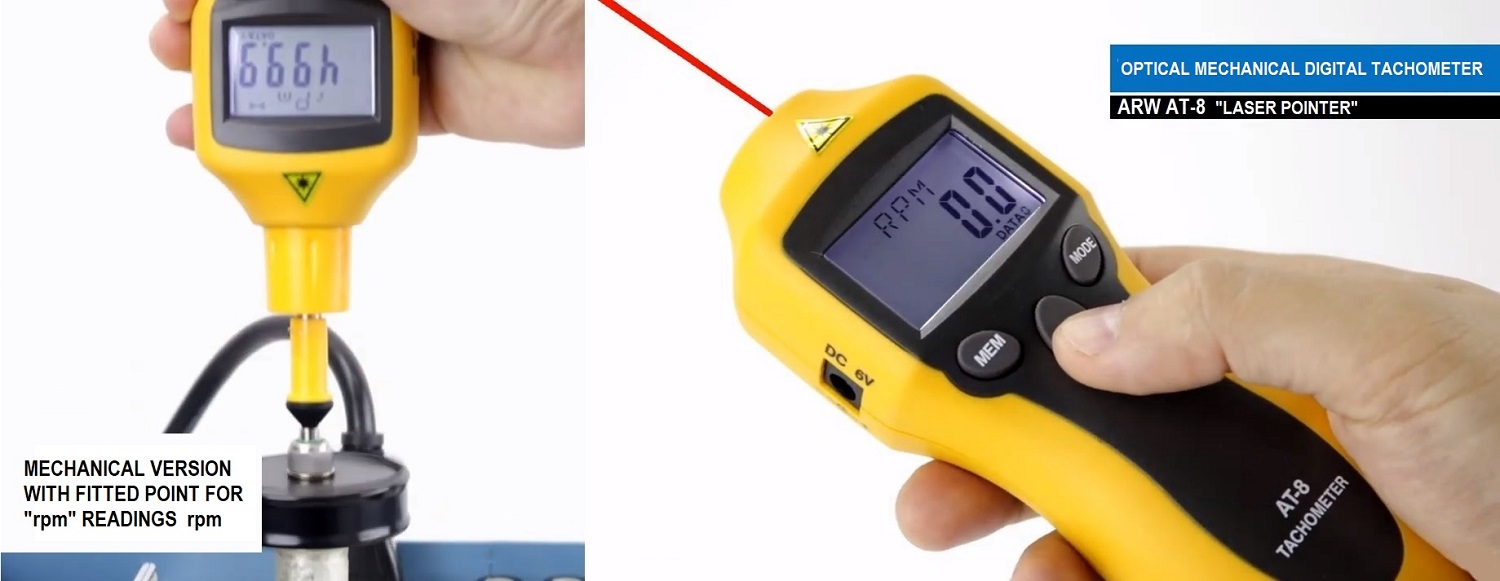

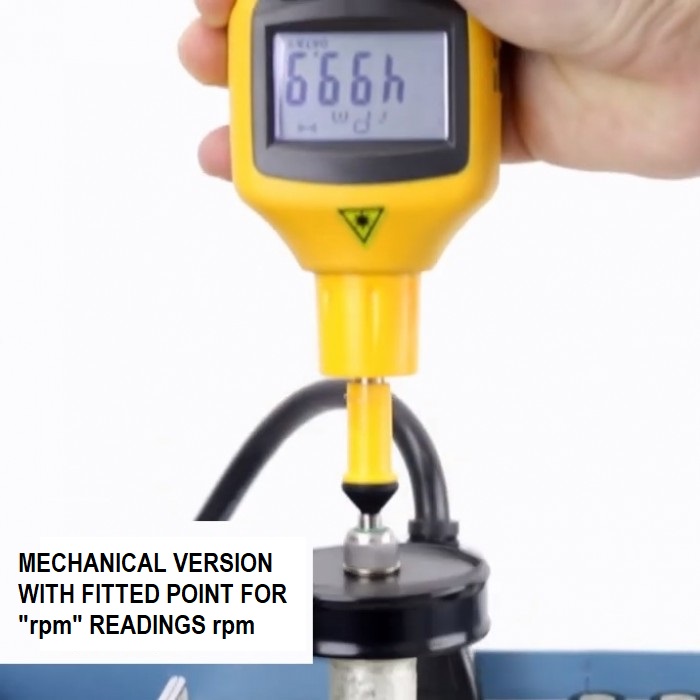

  • Measurement of rotation speed "RPM" (rpm) with the provision of two tips and tip holder.
  • 5-digit backlit LCD display.
  • Wide measuring range up to 20.000 RPM (g/min).
  • 40 reading memories.





Specifiche tecniche Tachimetro ottico meccanico ARW AT-8

Display

5 digits LCD display

Accuracy

±(0.05%+1 digits)

Range

(Contact) 2 - 20,000RPM, g/min

(optical) 2 - 99,999RPM, g/min

(total count) 1 - 99,999

Resolution

0.1 RPM (2 - 9999.9 RPM).1 RPM. (over 10000 RPM)

Sampling time

0.5 sec. (over 120 RPM)

Operating distance

50mm - 500 mm

Time base

Quartz crystal

Power consumption

Approx 45mA

Battery

9 V.

Operating temperature

0℃ - 50℃(32 - 122℉)





Supply kit

  • ABS case
  • Reflective adhesive strips
  • Connection for contact measurements complete with tips and wheel
  • BatterieS
  • User manual
