Pitot tube Anemometer Micromanometer ARW-8920

The ARW-8920 Pitot Tube Anemometer and Micromanometer is a portable and digital instrument designed for measurements of pressure, velocity and flow rate of air flows even in particular measurement conditions such as high temperatures, high speed or presence of impurities and dirt.

‹ ›

Product Code: 220122118
Availability: In Stock

Only 5 units available at this price
Reading the pressure, speed and flow rate of an air flow
Equipped with a large double-line backlit display
Data-Time and MAX MIN and Average-AVG functions
Supplied with USB interface and PC data management software

Further information

Pitot tube Anemometer Micromanometer ARW-8920

The ARW-8920 micromanometer/anemometer allows simultaneous measurement of both pressure and flow rate in a duct. Easy to handle and equipped with a large backlit LCD display for fast and precise reading.
Used to monitor HVAC (Heating, Ventilation and Air Conditioning) systems to ensure good quality indoor air distribution, ensuring proper airflow balance for a comfortable environment. Particularly suitable in cases where there are particular measurement conditions, such as, for example, high temperatures, high speeds, suction ducts with transport of dust or material residues, etc.

Main features Pitot Tube Anemometer ARW-8920

The Anemometer is equipped with a large LCD display with backlight
Date-Time and MAX MIN and Average AVG functions
Reading of the pressure, speed and flow rate of an air flow
Zero adjustment before each measurement
Simple setting for calculating the area of a rectangular or circular duct
USB interface and software for real-time data analysis with the instrument connected directly to the PC (included in the supply)
Low battery indication and sleep mode function
Possibility of measuring air flows with high temperatures, up to 600°C (On the condition of carrying out measurements quickly in order to avoid overheating the pitot tube and the tubes connected to the instrument)

Supply kit Anemomether ARW-8920:

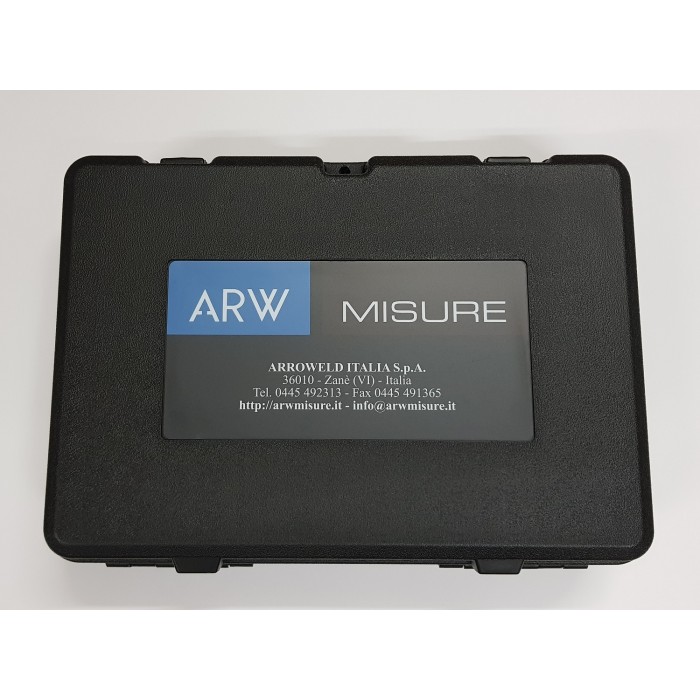

Batteria 9V batteria, cavo USB, software, Tubo di Pitot 300mm, custodia in ABS e manuale d’uso.

Technical specifications Pitot Tube Anemometer ARW-8920
Accuracy		±0.3%FSO (25°C)
Ripeatability		±0.2% (Max.±0.5% FSO)
Linearity/Hysteresis		±0.29% FSO
Pressure Range		±5000Pa
Max Pressure		10psi
Response time		0.5 Secondi Tipica
Out of scale indication		OL
Ubscale indications		-OL
		Unit of measure	Range	Resolution
		PSI	0.7252	0.0001
		mbar	50.00	0.01
		inH2O	20.07	0.01
		mmH2O	509.8	0.1
		Pa	5000	1
Pitot Tube Anemometer (Air speed)
		Range	Resolution	Accuracy
m/s(meters/second)		1-80.00	0.01	±2.5% della lettura(a 10.00m/s)
ft/min(feet per minute)		200-15733	1	Accuracy may vary depending on the size of the duct
km/h(kilometers per hour)		3.5-288.0	0.1
MPH(miles per hour)		2.25-178.66	0.01
Knots(nautical miles per hour)		2.0-154.6	0.1
Pitot Tube Anemoeter (Range)
	Range		Resolution
CFM	0-99.999ft3/min		0.0001 to 100
CMM	0-99.999m3/min		0.001 to 100
Temperatures (Internal instrument sensor)
	Range		Resolution	Accuracy
°C	0 to 50.0°C		0.1	±1.0°C
°F	32.0 to 122.0°F		0.1	±2.0°F
