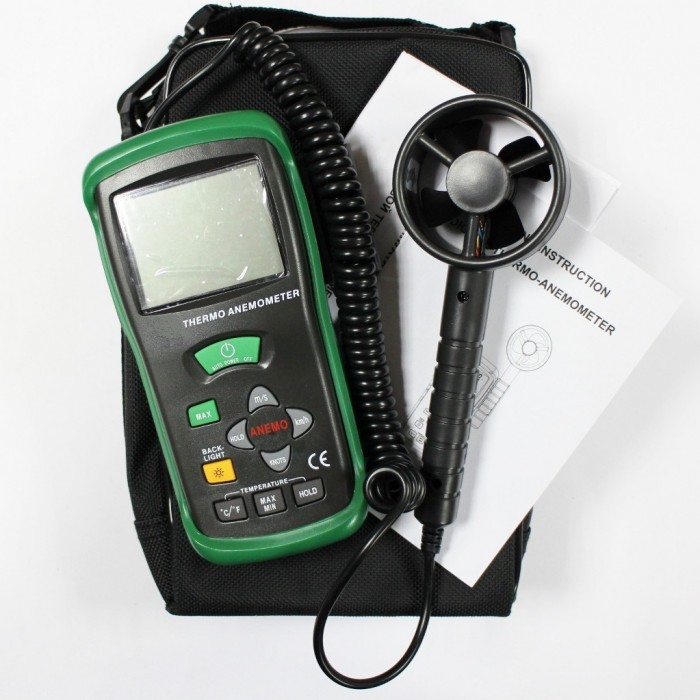

Vane Thermo-anemometer ARW-618

Digital and portable Thermo-Anemometer ARW-618 with separate wind wheel for measuring air flows in various fields of use. The instrument is equipped with a large backlit display with double reading, a protective shell and a shockproof case.

‹ ›

Product Code: 220121279
Availability: In Stock

Equipped with a practical and little vane (diameter 70 mm) that can be positioned next to the instrument
Large double-line backlit display
Selectable units of measurement, m/s, Knots, Km/h
Type K sensor for temperature measurements
High Sensitive and Accurate

Further information

Digital Thermo-anemometer ARW-618

ARW-618 portable Vane Thermo-anemometer designed for measuring the speed and flow rate of air flows on inputs and outputs of air conditioning and HVAC systems, equipped with a separate propeller sensor with a diameter of 70 mm.
The instrument is equipped with a large backlit display with simultaneous display of speed and temperature with indication of minimum and maximum values and a high sensitivity of m/s speed reading (approx. 0.6 sec.).

Main features Vane Anemometer ARW-618

High sensitivity and accuracy of speed reading m/s (approx. 0.6 sec.)
Little vane, diameter 70 mm
Equipped with a large dual line display
Type K sensor for temperature measurement with °C or °F measurement unit selection
Low battery indication and Auto Power Off
Selectable units of measurement, m/s, Knots, Km/h
Reading of minimum and maximum values and DATA-HOLD function for reading lock

Unit of measure	Scope	Resolution	Theshold	Accuracy
m/s	0.0-45.0	0.1	0.3	±3%
Knots	0.0-88.0	0.1	0.6	±3%
Km/hr	0.0-140.0	0.1	1.0	±3%
Temp.-°C	0-60.0	0.1		±0.8
Temp.-°F	32.0-140.0	0.1		±1.5

Technical specifications Thermo-anemometer ARW-618
Speed sensor mechanism	Vane bearing: “Jewel Sapphire”
Temperature sensor	K-type thermocouple
Operating temperature	0°C - 50°C (32 °F - 122 °F)
Operating humidity	Less than 80% RH
Operating pressure	500mbar - 2 Bar
Storage temperature	9V
Power supply	Approximately 50 hours
Average time for speed measurement	m/s 0.6sec. (approx.) knots 1.2sec. (approx.) km/hr 2.2sec. (approx.)
