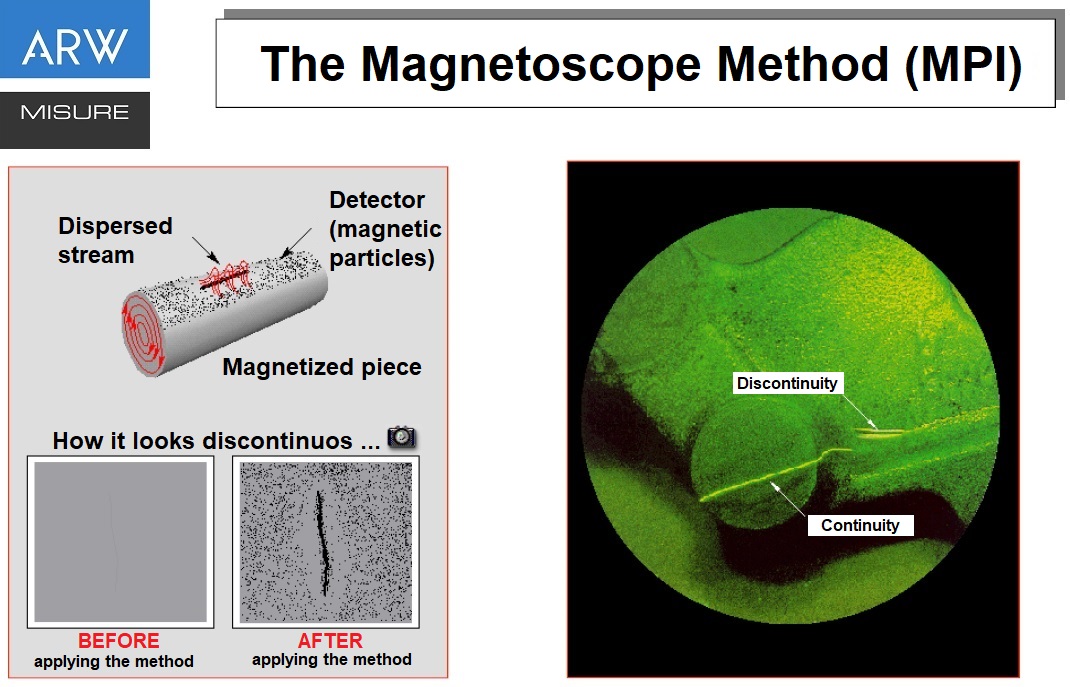

The ARW-H1 permanent magnet yoke for NDT non-destructive testing is a particular instrument that is used for inspections with the magnetic particle magnetoscopic method where there is no connection to the electrical network or for safety reasons.

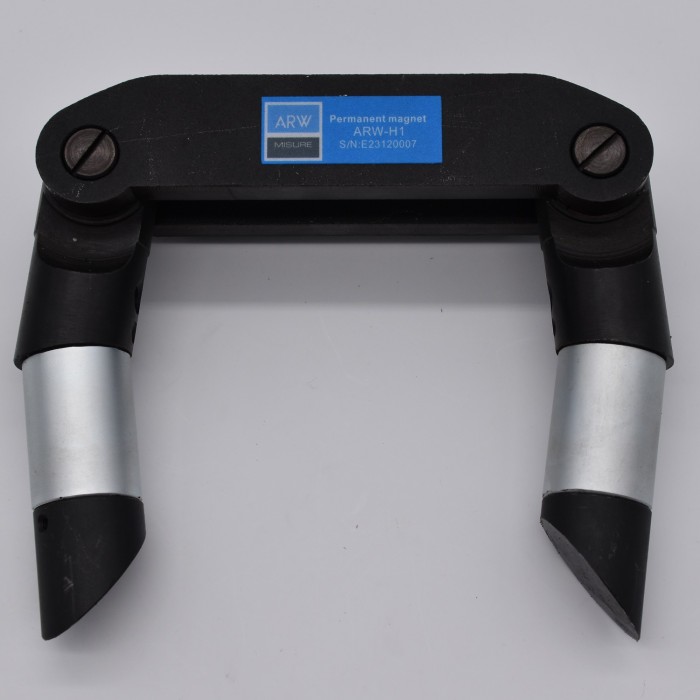

Permanent magnet yoke ARW-H1
Product Code: ARW-H1
Availability: In Stock
  • It represents the ideal solution in the event of a power failure or for safety reasons
  • Equipped with magnets capable of offering the highest magnetic induction density per unit volume currently on the market.

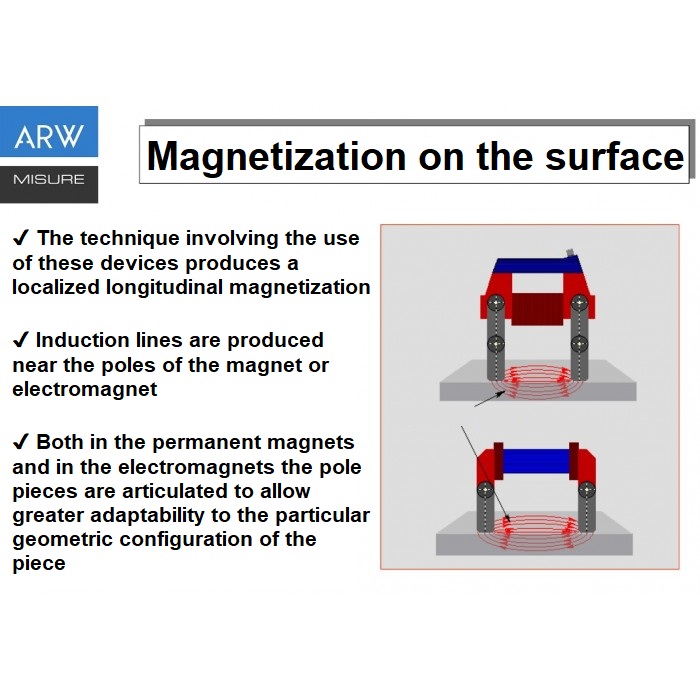

  • Complete rotation of the joints on the handle

Further information

Permanent magnet yoke ARW-H1

The ARW-H1 yoke is particularly suitable for use in places where there is no connection to the electricity grid and for use inside closed tanks and containers.

​


Main features Permanent magnet ARW-H1

  • Max length: 220mm.
  • Height: 158mm.
  • Pole diameter: 30mm.
  • Weight: 2.2kg.
  • Lifting force: 22.60Kg. (ASTM E1444/E1444M-12 Standard)

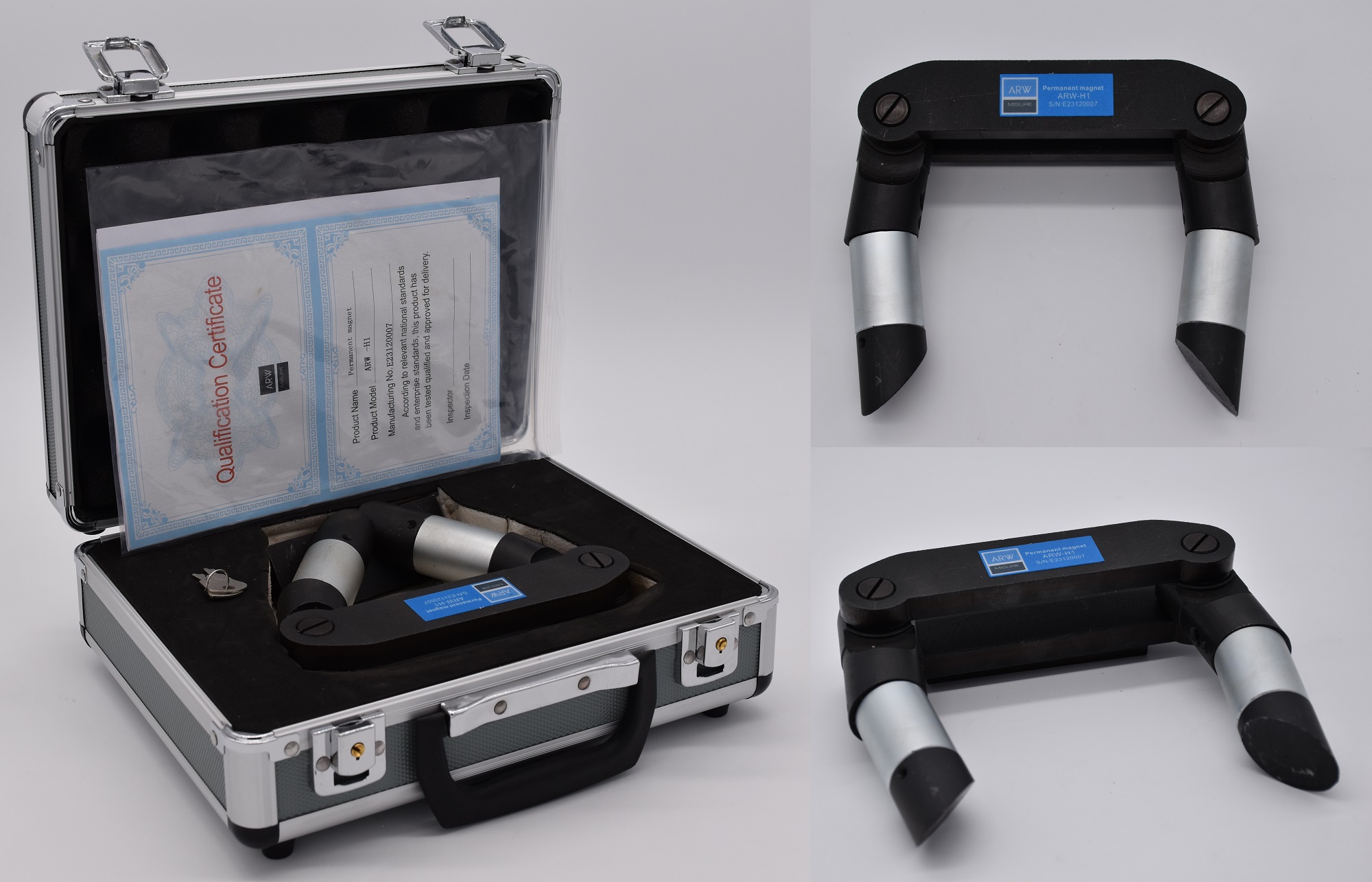

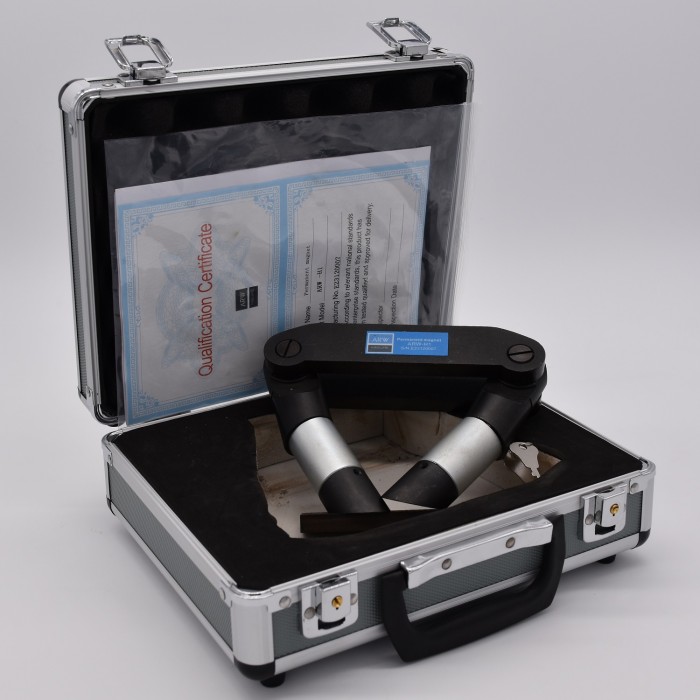

Supply kit: Declaration of conformity, test certificate, use and maintenance manual, transport case.
