Led wood lamp kit ARW-UV180

Led wood lamp kit ARW-UV180

ARW-UV180 ultraviolet lamp is also called Wood's Spotlight, Black Light Lamp, UV Lamp and Fluorescent Leak Detection Lamp!

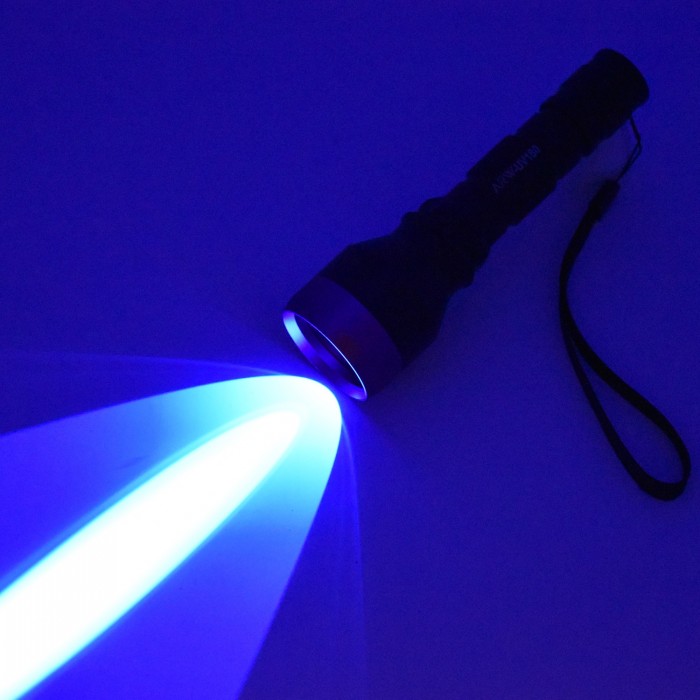

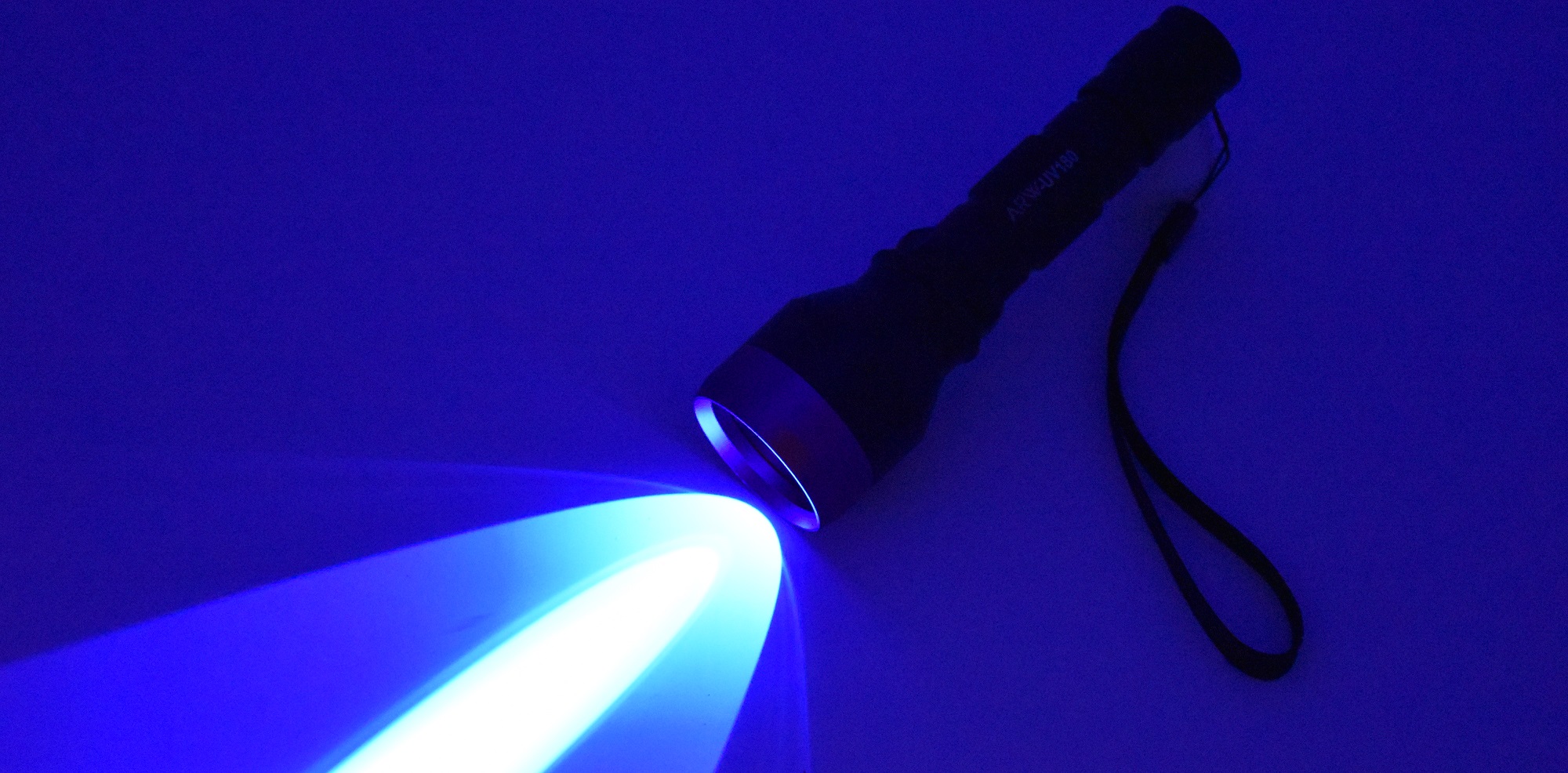

It is a small flashlight equipped with lithium batteries with LED cold light technology that offers a duration of approximately 50,000 hours of use. ARW-UV180 UV lamp produce a powerful concentrated and constant ultraviolet light, the on/off button is positioned behind the lamp to prevent accidental start-up and the battery is charged for about 6 hours using normal power outlets.
ARW-UV180 lamp black light spectrum is pure, a saturated UV-A component and black light filter, completely eliminate visible light, harmful light, for fluorescence detection in the field of non-destructive testing "NDT ” for material and weld flaw and crack detection, oil spot contamination detection, leak detection, and mineral exploration.

Main features UV Lamp ARW-UV180

• Quick start, on and off, without preheating
• Screenshot from electromagnetic interference, can work in strong magnetic field
• Compact and extremely robust, low energy consumption and long life low temperature operation
• Long life of the LED lamp of about 50,000 hours
• Change the design in the tail, prevent accidental startup, more safe and stable
• Lithium battery can be used continuously for more than 2 hours, equipped with power supply and car charger, easy to charge
• Safety and spectral purity, free from UV-B and UV-C components
• 380mm illumination is 30000 uw/cm2, LED technology illumination stability is high, ultraviolet light decay can be ensured
• High intensity ultraviolet energy is released and previously invisible fluorescence can be seen in sunlight and beyond
• Complies with IP65 degree of protection, dustproof
• Equipped with a current regulator which keeps the UV intensity constant even if the battery runs out
• All components, including the Torch, are RoHS certified according to 2002/9

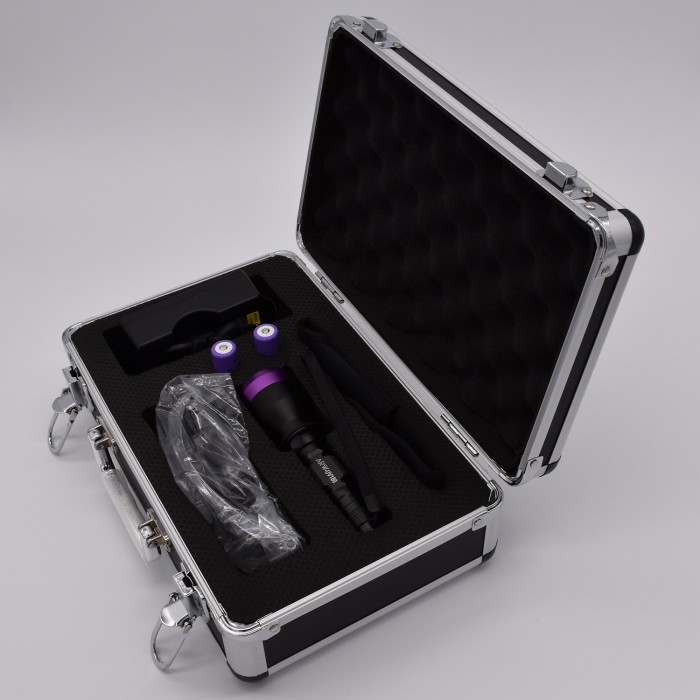

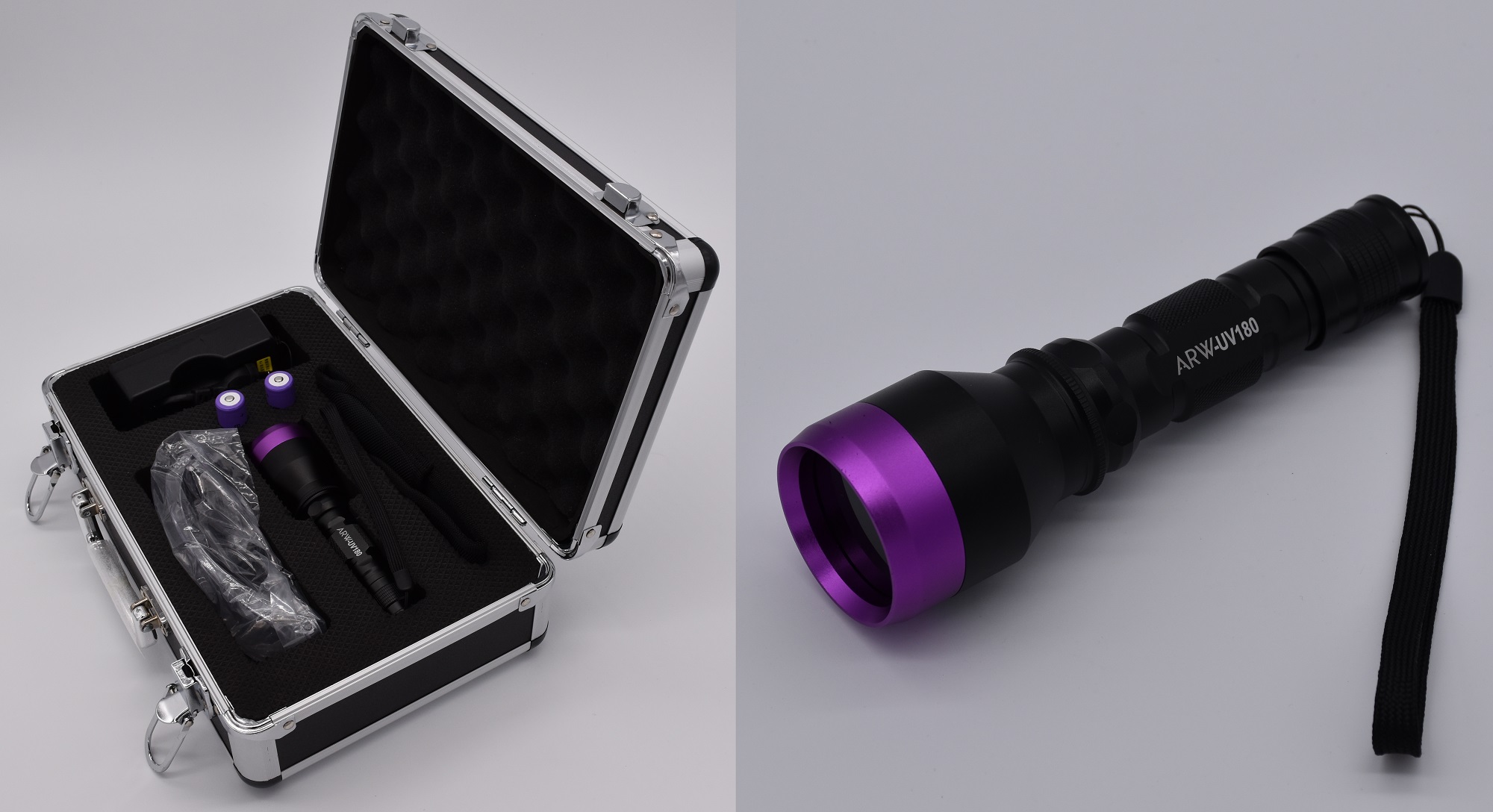

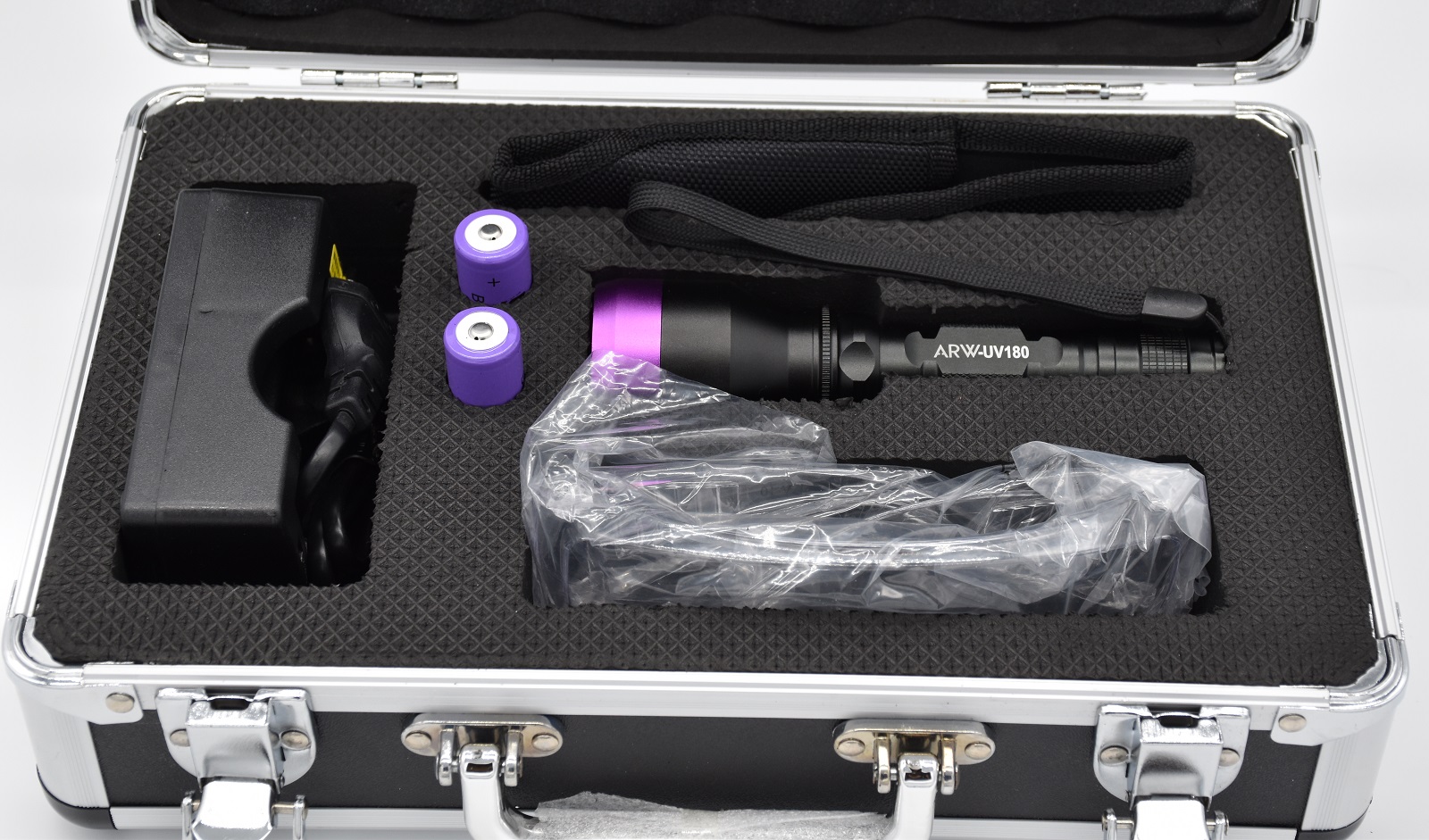

Kit Standard configuration Wood spotlight ARW-UV180

• UV LED flashlight
• 2 Batteries complete with recharging system
• UV protective glasses
• Portable carrying case with belt holster
• ABS case
• User manual

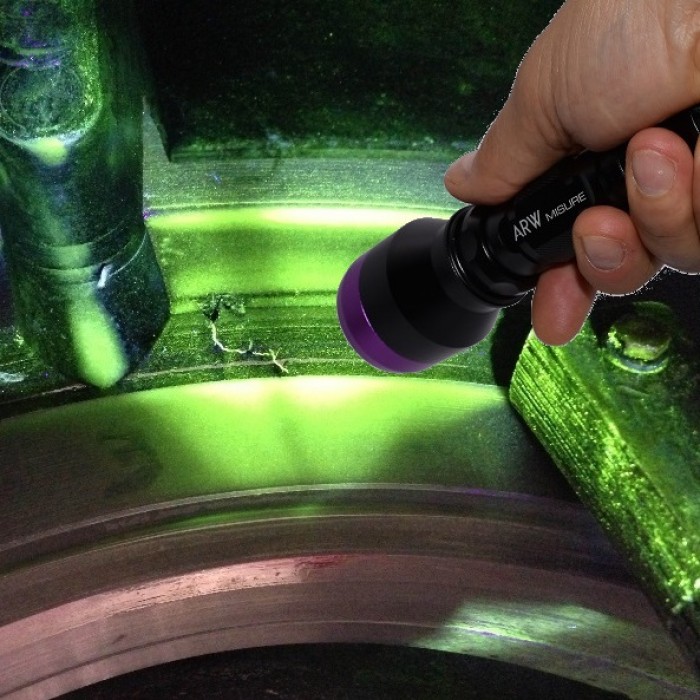

Detection of superficial and sub-surface "NDT" defects and cracks on materials and welds with the fluorescence method

• Wood's lamp is used in flaw detection as part of non-destructive testing (NDT) on materials and welds in combination with fluorescent penetrating liquids or, in combination with magnetoscopy with fluorescent magnetic liquids.
• UV lamp is also used Examples include; subtle cracks in the aircraft's landing gear, automotive steering systems and many other safety-critical components that our lives can depend on. Defects literally jump out of the inspector due to the dramatic contrast between the bright image and shining of a defect on a dull background.

Some typical applications of the ARW-UV180 ultraviolet flashlight:

• Fingerprint detection
• Contamination: the use of ultraviolet lamps to stimulate the fluorescence of fatty substances and identify oil stains or other types of contamination.
• Verification of cleanliness in the medical field: check the degree of cleanliness of pharmaceutical equipment using riboflavin.
• Health Examination: Since human body fluid and other biological tissue pollutants are the source of bacterial reproduction and odor, the use of the ultraviolet lamp is a good method for the corresponding health examination.
• Arson Investigations: Firefighters can inspect the scene of a suspected fire, because splashes of combustible chemicals can be found on walls, furniture and carpets under ultraviolet light
• Document Inspection - Uses UV fluorescence detection to identify driver's license, passport, credit card and other documents.
• Car Theft Detection: Reveals fluorescent evidence on the label of 3M vehicle identification numbers illegally removed from vehicle components.
• Counterfeiting: ultraviolet lights are used around the world by public businesses and banks for checking banknotes
