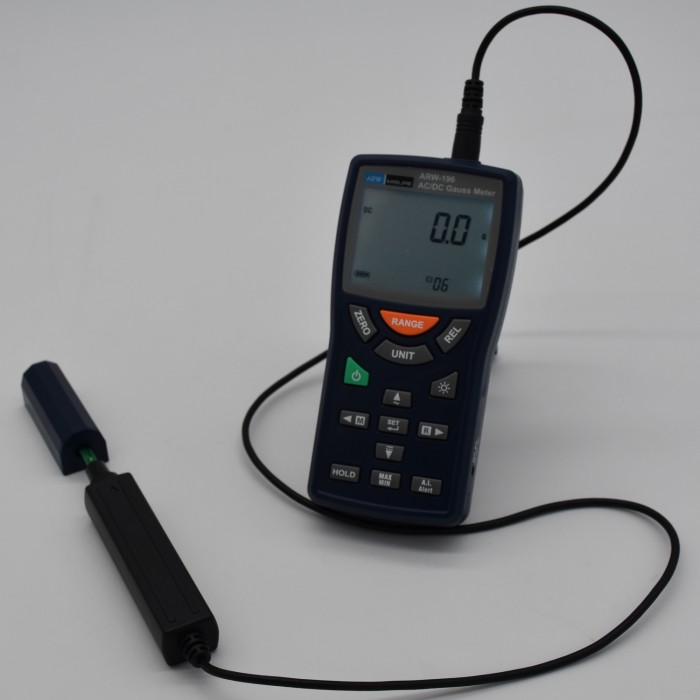

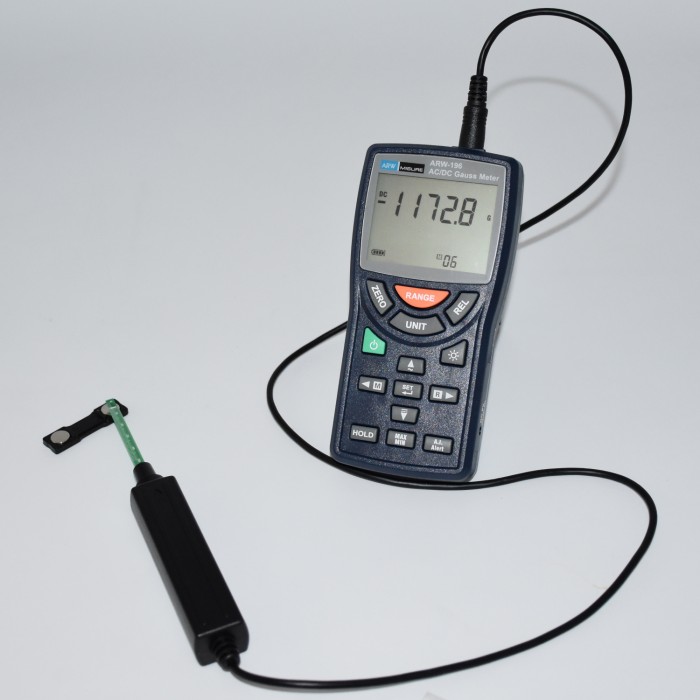

The AC/DC ARW-196 digital Gaussmeter is an instrument used to provide accurate measurements of the magnetic field of both AC and DC fields. It provides high precision measurements thanks to the use of a transverse uniaxial Hall effect probe with automatic temperature compensation.
Portable AC/DC Gauss Meter ARW-196
Product Code: ARW-196
Availability: In Stock
  • Measurement of magnetic fields in DC and AC
  • The instrument is equipped with an LCD display with backlight and automatic switch-off function.
  • Supplied complete with a transversal Hall effect measurement probe with automatic temperature compensation.
  • Possibility to select the measurement units: Gauss, Tesla or Ampere/Meter.
  • Relative limit and high/low alarm functions, Data Hold and maximum and minimum value recording function.
  • X,Y and Z aixs vector summing functions

Further information

Gaussmeter for measuring AC/DC magnetic fields ARW-196

The ARW-196 Digital Gaussmeter is an instrument used to perform accurate measurements of AC and DC magnetic fields. It is a portable instrument equipped with a backlit LCD display with automatic power off and equipped with a transverse uniaxial Hall effect probe with automatic temperature compensation.

Main features Portable AC/DC Gaussmeter ARW-196

  • Using Hall sensor with automatic temperature compensation.
  • LCD display with backlight and automatic shutdown mode.
  • X,Y and Z aixs vector summing functions.
  • Selectable units of measurement: G (Gauss), TESLA and Ampere/meter.
  • Equipped with alarm with high/low limit signal.
  • Data Hold & Maximum/Minimm record function.
  • Manual memory stores up to 99 data.
  • DC Zero & AC Trms function.





Applications Gaussmeter ARW-196

  • DC magnetic field meter measuring static magnetic strenght.
  • AC magnetic field meter measuring the wave motion of the electromagnetic field (EMF).
  • After machine component are processed, remain the magnetism to measurement.
  • Magnetic force measurement of the magnetisable material.
  • Magnetic application products, the intensity of magnetic field measurement.
  • Electrical home appliances products,the magnetic field intensity measurement of the motor.
  • Magnetic field intensity measurement of the permanent magnet.
  • Various steel products brought magnetic measurement naturally.



Technical specifications AC/DC Gaussmeter ARW-196

Measurement

Range

Resolution

Accuracy (23±5℃)

DC

3000.0G

30000G

0.1G

1G

±(3%rdg+10d)

300.00mT

3000.0mT

0.01mT

0.1mT



AC

2000.0G

20000G

0.1G

1G

±(4%rdg+20d)

(20Hz ~ 20kHz)

200.00mT

2000.0mT

0.01mT

0.1mT

Number of axis

Uniaxial traverse probe

Hall sensor TC

Probe head build the temperature sensor for automatic temperature compensation the hall sensor.

Manual memory

Maximum 99 data can be stored and read manually

Operating

0 to 50°C, max. 90%RH

Storage

-25°C to 70°C, max. 70%RH

Power requirements

4 IEC 46 (size AA), AC adapter 6V (option)

Battery life

Approx. 8 hours

Dimensions / weight

158(L) x 78(W) x 40(H)mm / Approx. 287g

Accessories

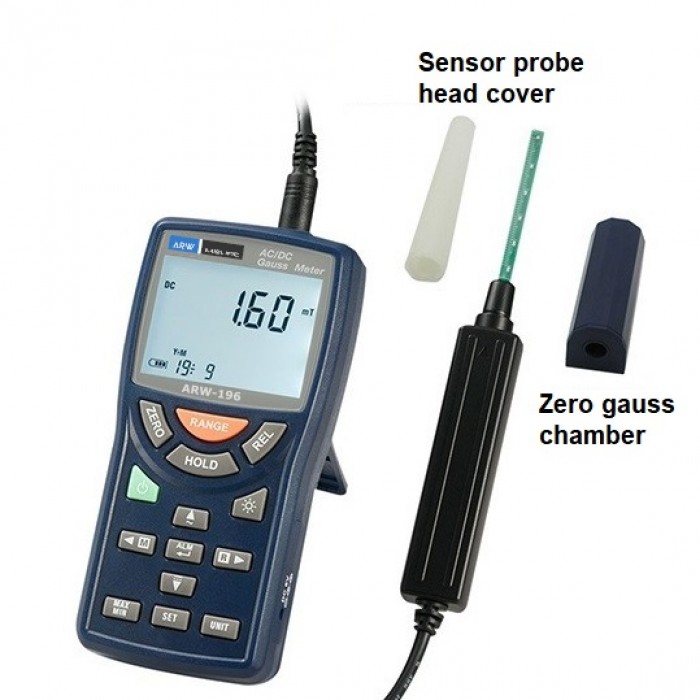

Instruction manual, battery, carrying case, zero gauss chamber
