Differential Pressure Gauge ARW-8890

The ARW 8890 is a differential pressure gauge from 0 to +/-5 psi that allows you to measure pressures in 11 different selectable scales. Particularly suitable in the plumbing and heating sector, in the air conditioning and heating fields.

Product Code: 220121432
Availability: In Stock

Equipped with large backlit display for clear reading of parameters
Function max, min, average and Zero value setting
Compliance with EMC regulations EN: 50081 - 1, 50082 – 1

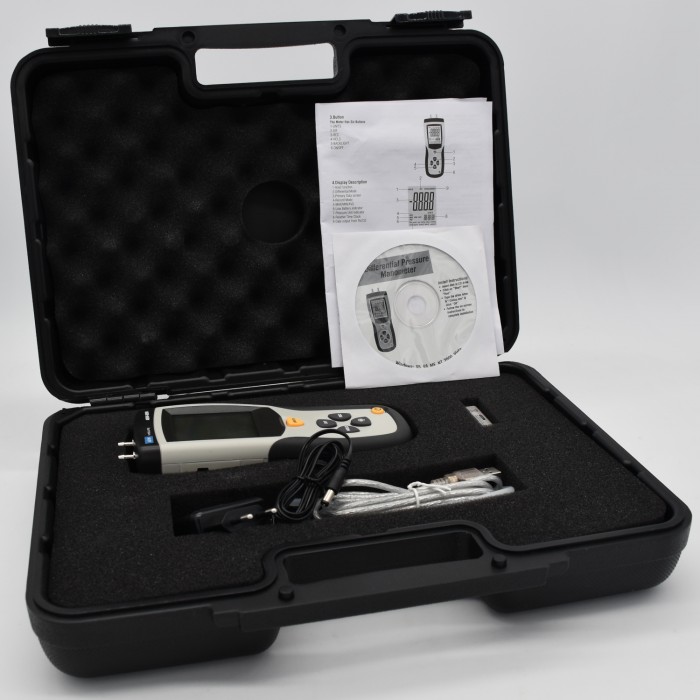

Supplied complete with silicone tubes, software complete with USB cable, ABS case and user manual.

Further information

Differential Pressure Gauge ARW-8890

The portable and digital instrument ARW-8890 is a differential pressure meter equipped with a large backlit display with a measurement range from 0 to +/-5 psi and with the possibility of choosing 11 different units of measurement: bar, mmHg, ozin2 , kgcm2, psi, inH2O, kPa, ftH2O inHg, cmH2O, mbar, kPa.

The meter is equipped with numerous features such as the value recording function with max, min and average indication, Hold function to block the reading, auto-off function and is supplied complete with software and USB cable for data transfer to PC.

Main features Differential Pressure Gauge ARW-8890

Equipped with a large backlit display for fast and precise reading of the parameters
Data hold function
Zero value setting
Function ,max, min, average
Low battery indication and Auto power off function
Complies with EMC standards EN: 50081 - 1, 50082 – 1
Ideal Pressure gauge for applications in the thermo-hydraulic sector, in the field of air conditioning, air conditioning and heating (HVAC)

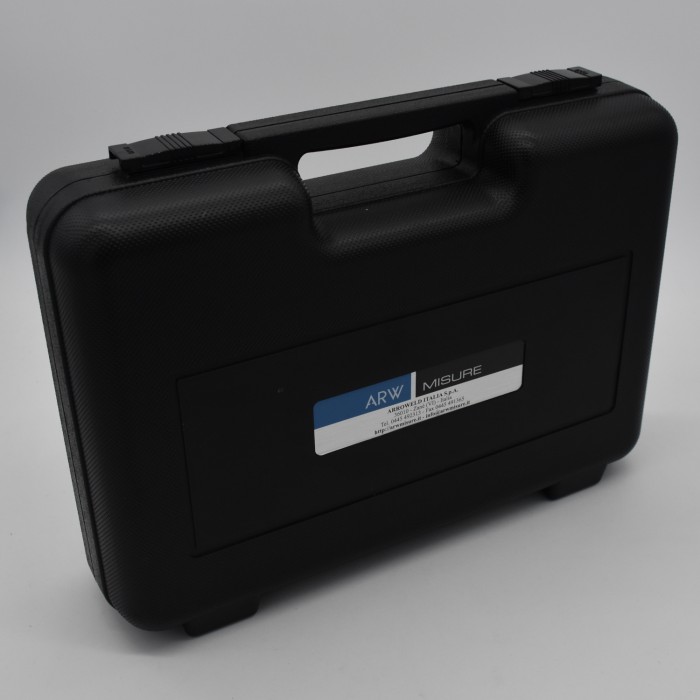

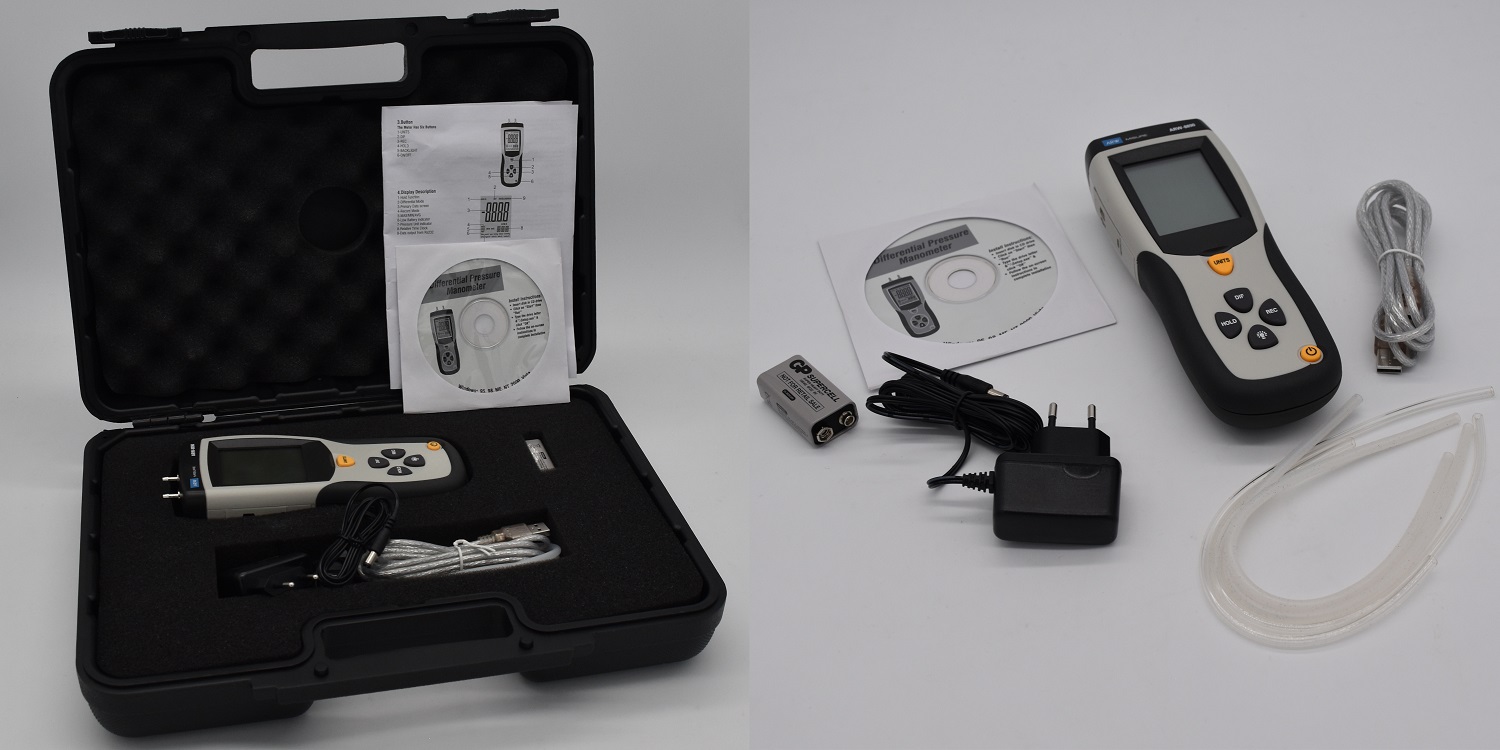

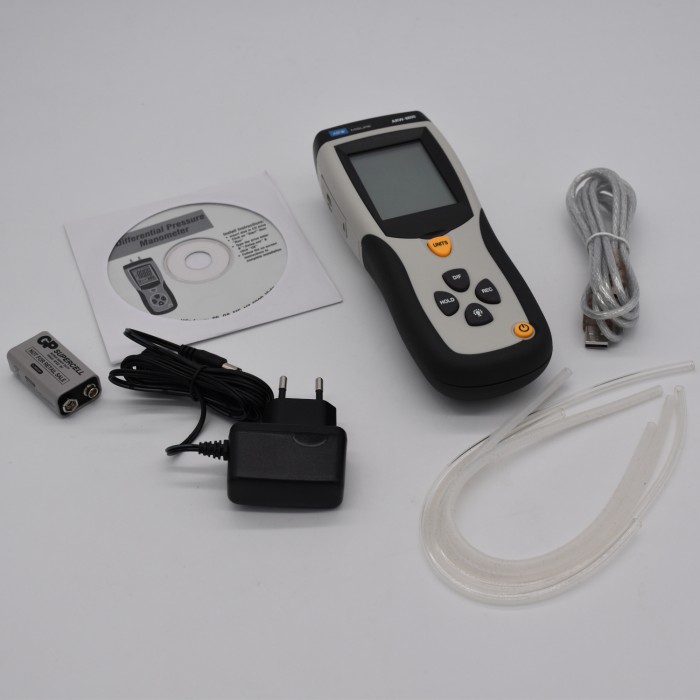

Ther instrument is supplied complete with silicone tubes, software complete with USB cable, ABS case and user manual.

Technical specifications Differential Pressure Gauge ARW-8890
Accuracy	± 0.3 % FSO
Ripeatability	±0.2% (Max +/- 0.5% FSO)
Linearity	± 0.29% FSO
Selectable unit of measurement	bar, mmHg, ozin2, kgcm2, psi, inH2O, kPa, ftH2O inHg, cmH2O, mbar, kPa
Measuring Range	± 5psi (±138.3 in H2O ± 345 mbar)
Resolution	0,001psi / 0,1mbar
Dimensions - Weight	210mm x 75mm x 50mm - Weight:: 280g
