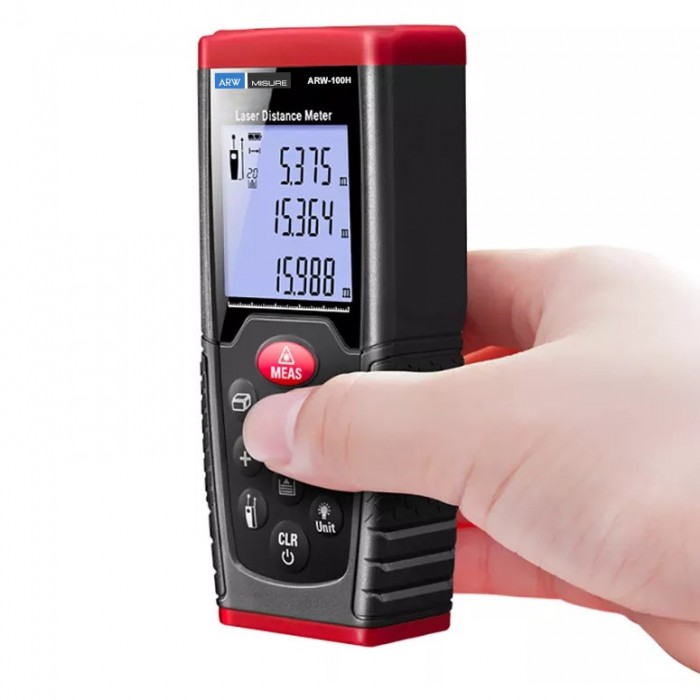

Laser distance meter ARW-100H

Home » shop » Laser distance meter ARW-100H

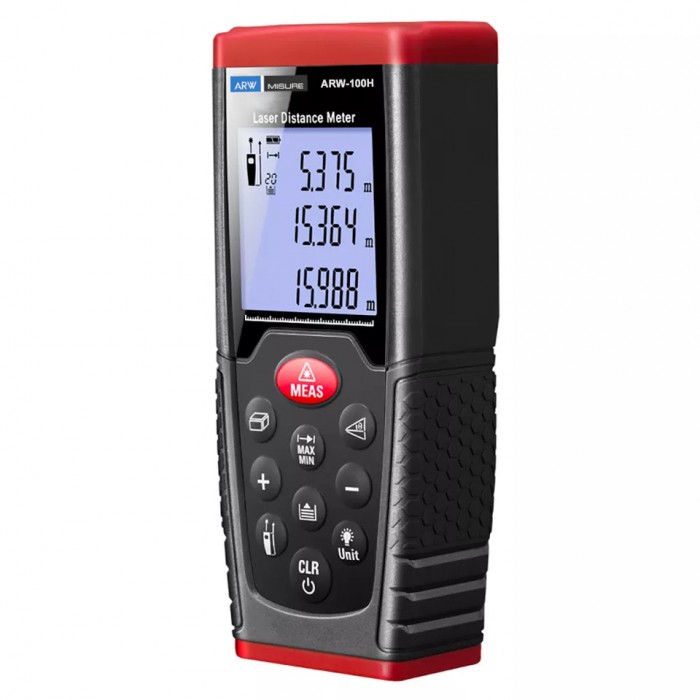

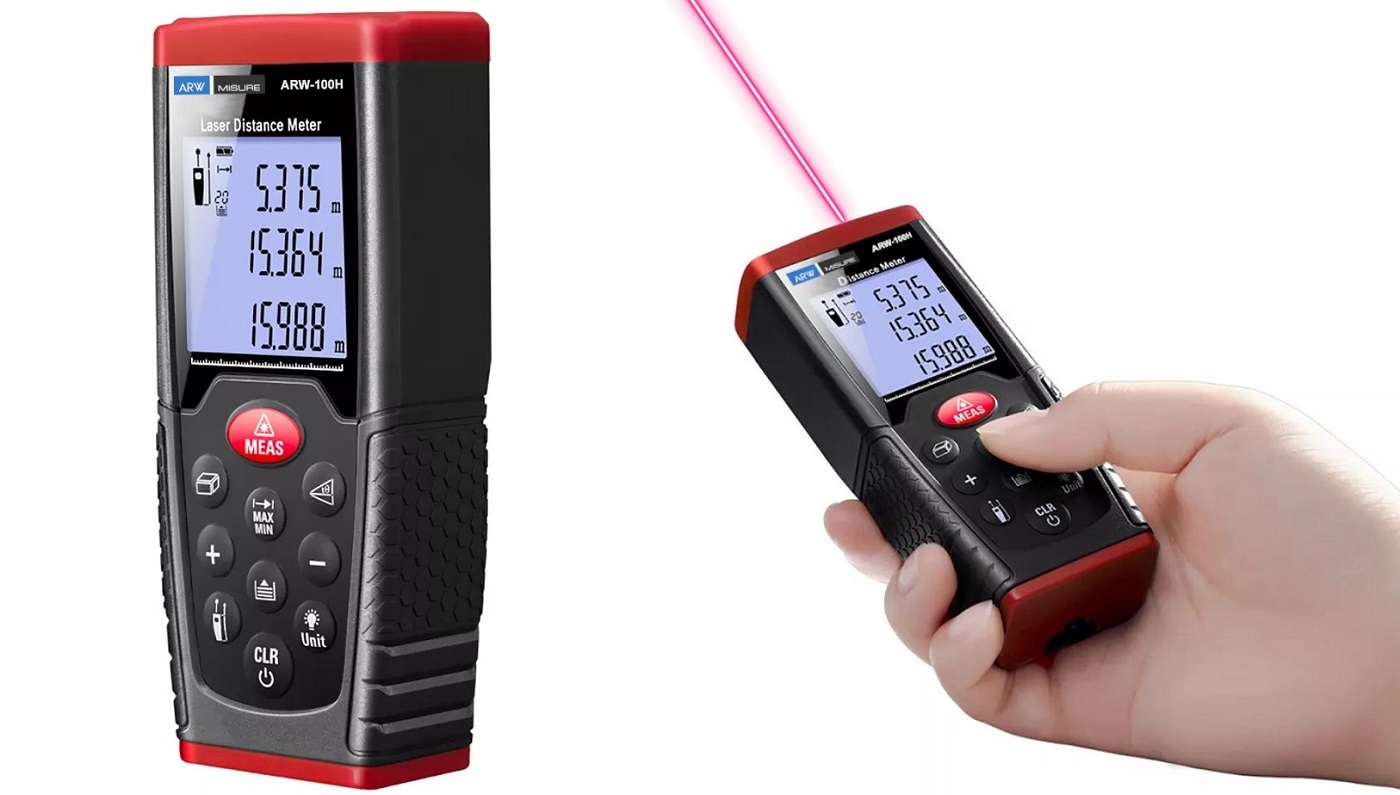

The ARW-100H laser measurer is a compact, practical, pocket-sized tool designed for high accuracy in distance measurement. It is equipped with a large backlit LCD display for precise reading of values, fast laser measurement in 0.15 seconds, IP54 protection against dust and water splashes and and automatic power off function.
Laser distance meter ARW-100H
Product Code: 220121772
Availability: In Stock
  • The instrument is very light (100g.) and pocket-sized
  • Equipped with a large LCD display to quickly and accurately read the measured values.
  • Automatic storage of the last 20 results.
  • Laser measurement for fast detection in 0.15 seconds
  • Equipped with IP54 protection rating against dust and water

Further information

Laser distance meter ARW-100H "100mt"

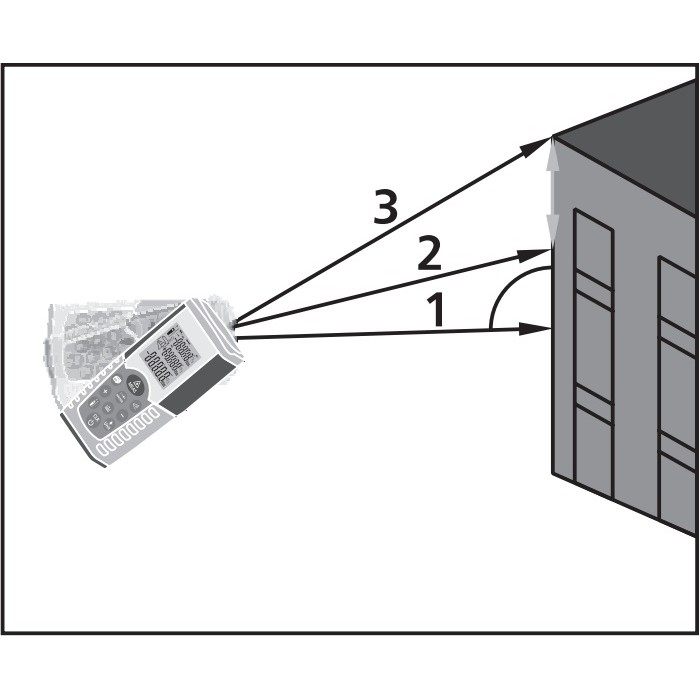

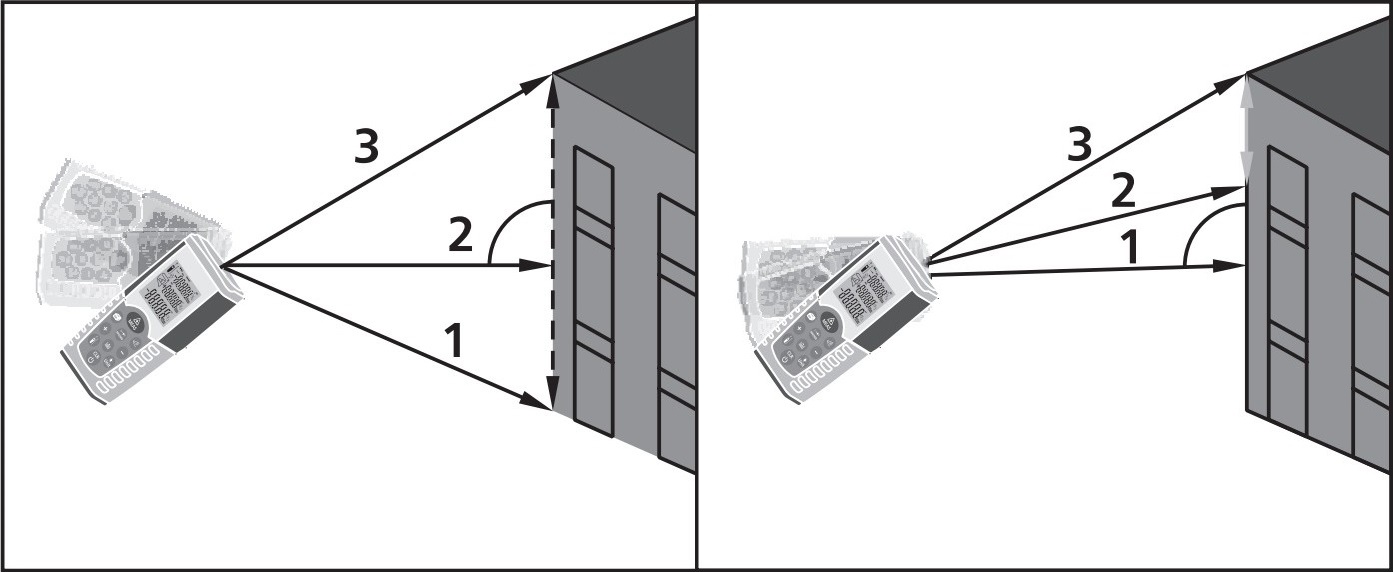

ARW-100H is a laser distance measurer designed to satisfy any kind of high precision professional use. Thanks to its innovative technology, distance and size estimation can be detected by a single operator. In addition, the ARW-100H is equipped with calculation functions for measuring areas and volumes with the built-in Pythagoras function. Thanks to the latest generation sensors with which it is equipped, it is also possible to measure horizontal or vertical measurements that are somehow "obstructed" by an object.



Main Features ARW-100H Distance Meter

  • Equipped with a large LCD display which allows you to clearly and precisely view the parameters detected.
  • Automatic storage of the last 20 results.
  • Instrument with a light structure (100g.) and pocket dimensions for easy transport.
  • Equipped with IP54 protection level against the possible entry of dust and splashes of water.
  • The innovative feature of automatically turning off the display after 3 minutes of inactivity significantly increases battery life.
  • Equipped with laser measurement which allows quick measurement in 0.15 seconds and has the ability to reach remote and hard-to-reach places.





Technical specifications Laser distance meter ARW-100H

Range

0.05 to 100 mt (0.15 ft to 328.0 ft)

Measurement accuracy

± 1.5 mm (± 0.06 ft)

Unit of measure

mt, in, ft

Laser

Class II

Type of laser

635nm, <1mW

Auto BiasTM technology

Yes

Area and volume calculation

si

Simple Pythagoras functions

Yes

Addition and subtraction

Yes

Max and min distance

Yes

Measurement on 3 axes

Yes

Automatic horizontal distance

Yes

Multifunction illuminated display

Yes

Buzzer:

Yes

Degree of protection

IP54

Storage

Last 20 measurements

Keyboard

Super Soft Touch

Operating temperature

-10°C a +50°C

Battery life

Over 4.000 measurements

Power supply

Two 1,5V AAA batteries

Laser auto-off

After 30 sec.

Auto power off of the instrument

After 3 min. of inactivity

Dimensions

H 110 x L 48 x P 28 mm

Weight with batteries

150 g.
