Hygrometer for materials ARW 125-G

Home » Measurement instruments » Materials and Coatings » Hygrometers For Materials » Hygrometer for materials ARW 125-G
The ARW 125-G material hygrometer is an indispensable instrument for determining and monitoring the humidity rate. It is equipped with a large backlit graphic display and built-in electrodes to measure humidity on materials, in particular wood, building materials, paper and cardboard.
Hygrometer for materials ARW 125-G
Product Code: 220122354
Availability: In Stock
  • Equipped with a Large backlit graphic display
  • Supplied complete with separate electrodes for various applications
  • Direct reading also through built-in electrodes
  • Ergonomic non-slip handle with sturdy and compact structure

Further information

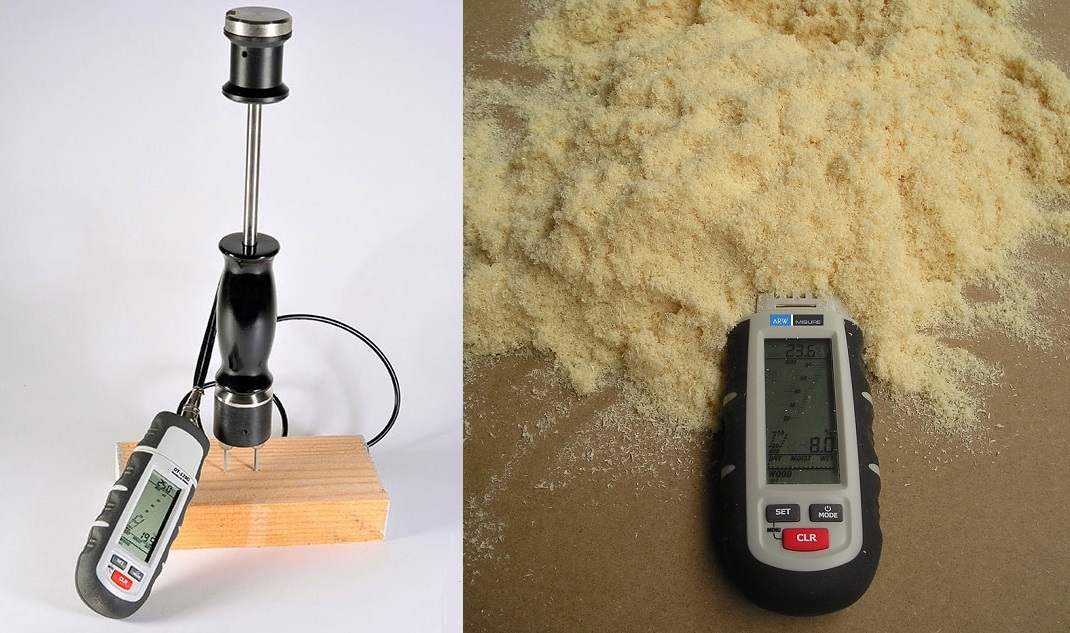

Moisture meter ARW 125-G

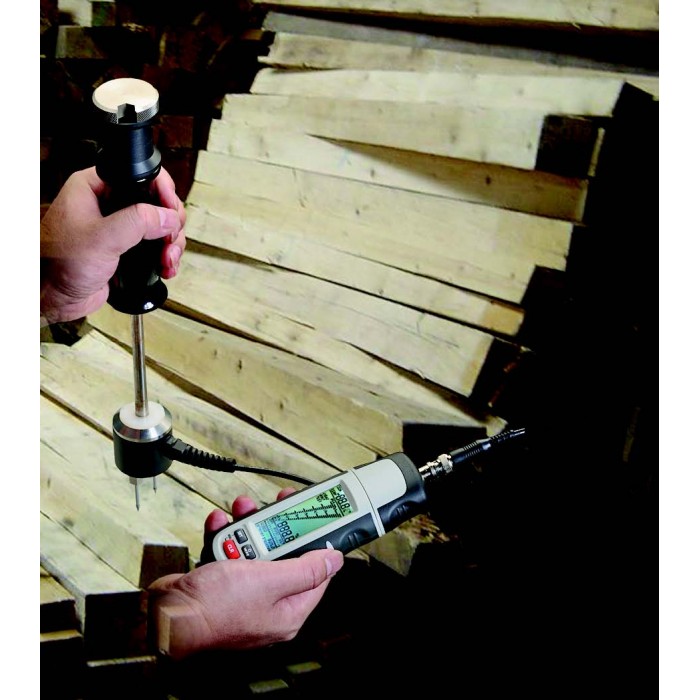

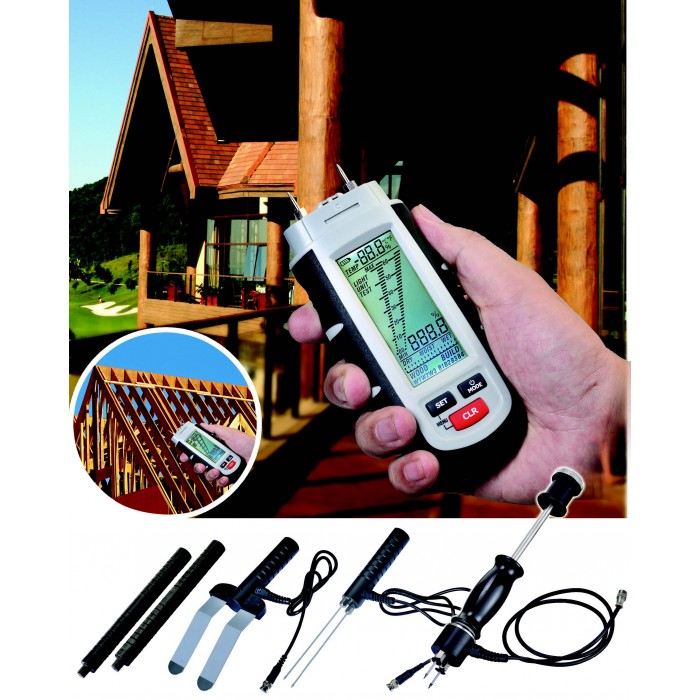

Hygrometer for materials used to detect the level of humidity present on wood and building materials (plaster, concrete, mortar, gypsum, expanded polystyrene, cement, etc.) by selecting different groups. It is also possible to carry out measurements on cardboard and paper using the special accessories supplied. This simple, compact and ergonomic instrument with a non-slip handle offers a large graphic display with indication of the humidity value of the material in % with respect to the dry mass.

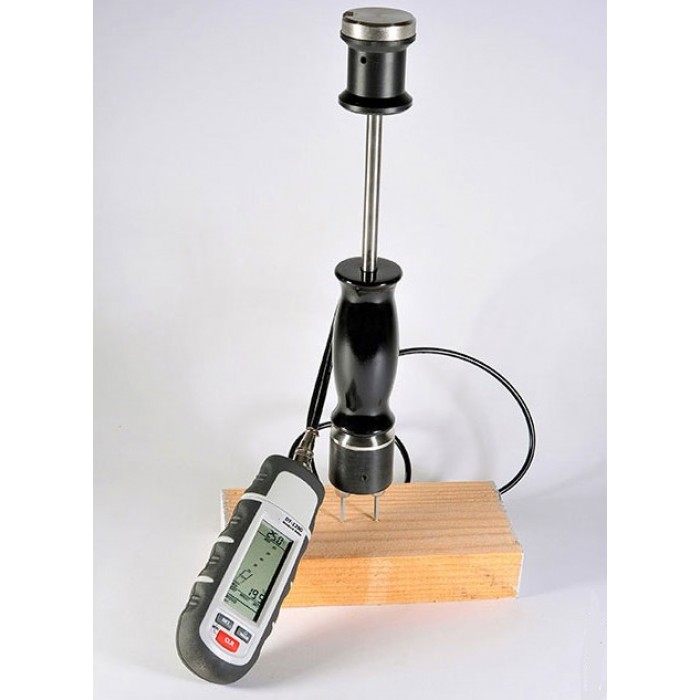

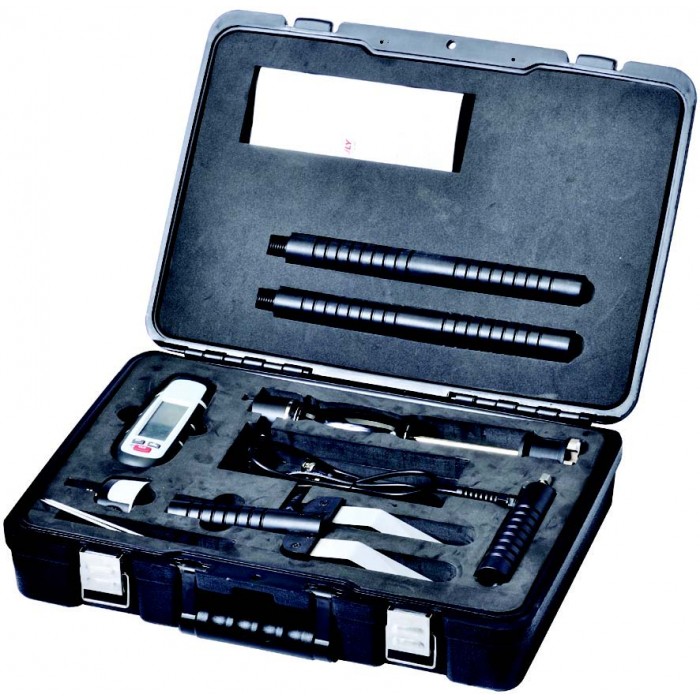

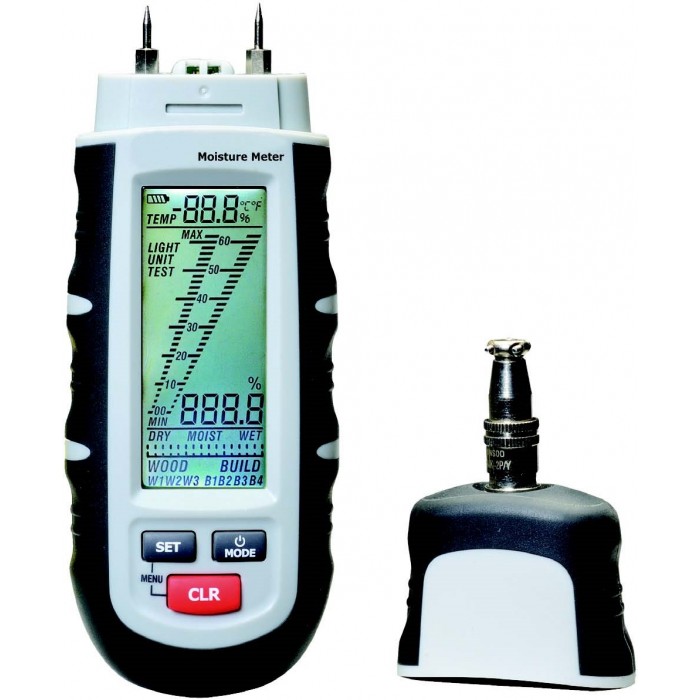

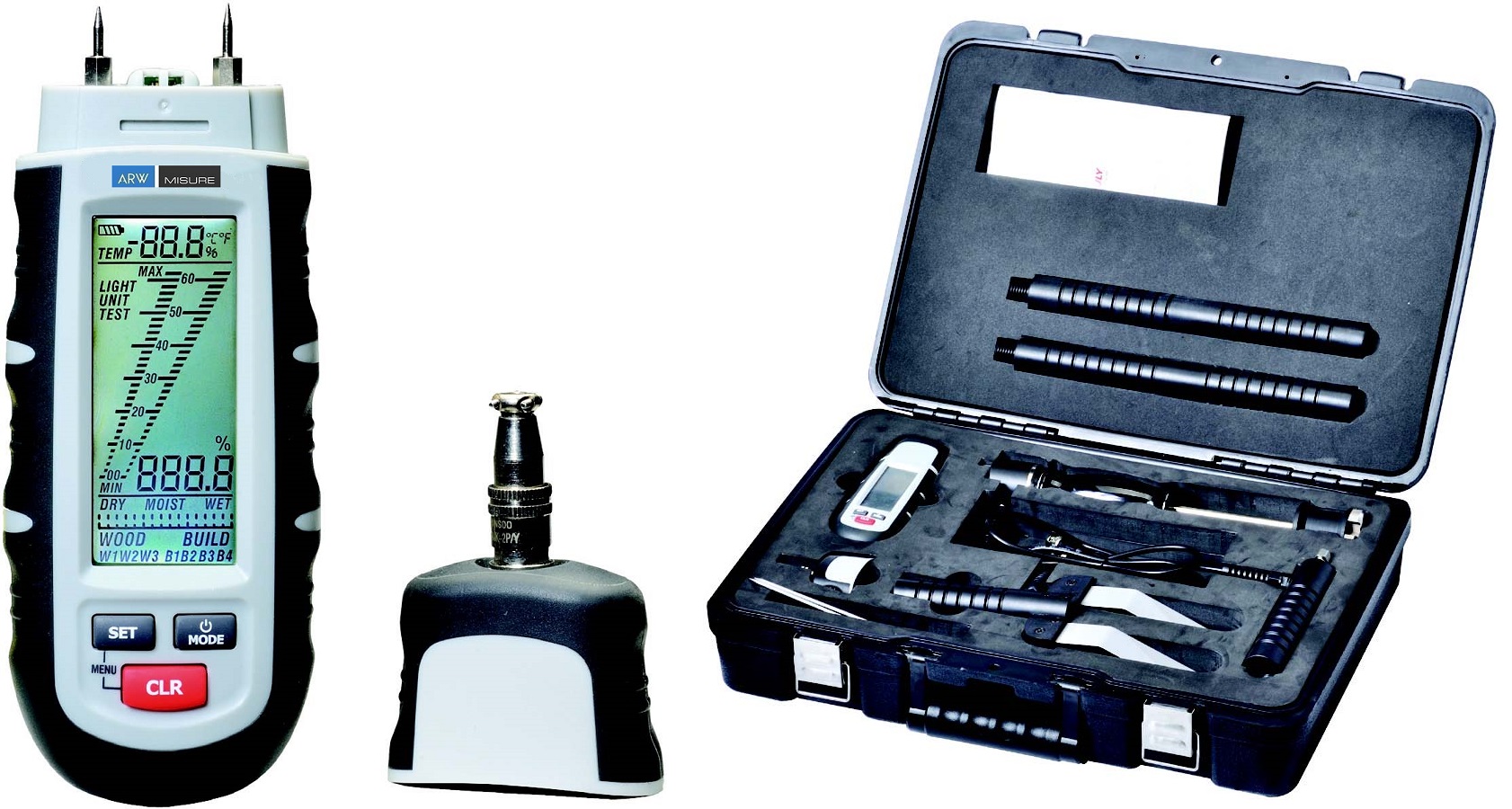

Supplied complete with: instrument with built-in electrodes, connector for connecting external probes, hammer electrode, blade electrode and electrode extensions.



Main features Hygrometer for materials ARW125-G

  • Equipped with a large backlit graphic display that allows quick reading of the values
  • Supplied complete with separate electrodes for various applications (adapter supplied for connecting external electrodes)
  • Direct reading also via built-in electrodes
  • The instrument has a sturdy and compact structure with a non-slip grip





Technical specifications Hygrometer for materials  ARW-125G

Measurement principle

By electrical resistance

Lenght of the electrodes

8 mm

Electrodes

integrated, replaceable

Measurement range

Wood 1÷75%; Construction 0.1÷2.4%

Room temperature

From -40 to 70°C

Ambient relative humiditty

0~100%

Accuracy - wood





0~30% = ±1%

30~60% = ±2%

60~75% = ±4%

Accuracy - ohter materials

±0,5%

Ambient temperature measurement:

-40°C ~ -10°C e +40°C ~ +70°C = ±2°C ~ -10°C ~ +40°C = ±1°C

Room relative humidity measurement

0~20% e 80°C ~ 100% = ±5.0% ~ 20~80% = ±3.5%

Auto power off

after about 3 minutes of non-use

LCD blacklight

automatic shutdown after about 10 seconds of non-use

Battery

3 x CR2032

Operating conditions

Ambient relative temperature: 0~40°C



Ambient relative humidity: 0~85%RH

Dimensions

160×60×28 mm

Weight

203 g
