Fine dust meter "Particle Counter" ARW-96B

Home » Measurement instruments » Environmental Measurements » Particle Counter - Dust Monitor » Fine dust meter "Particle Counter" ARW-96B
The ARW-96B environmental pollution meter is a digital instrument used for detecting the concentration of fine particles in two measurement levels (PM2.5/PM10). It is equipped with a large 2.0" backlit TFT LCD color display and a Bluethoot interface for connection to smartphones and tablets with a free downloadable APP.
Fine dust meter "Particle Counter" ARW-96B
Product Code: 220122690
Availability: In Stock
  • Equipped with a backlit 2.0" TFT LCD color display for precise and fast readings
  • Measurement of fine particles in two measurement levels (PM2.5/PM10)

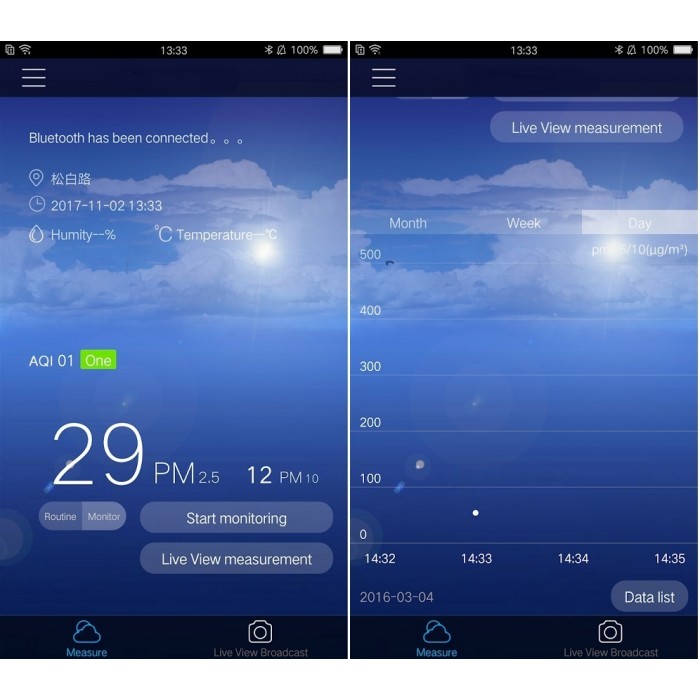

  • Bluetooth interface for simple and fast data transfer to Smartphone or Tablet (Free downloadable "Application" available)
  • Measurement of ambient temperature and humidity with date and time indication
  • Equipped with a colored graphic bar to indicate the pollution level

Further information

Fine dust meter ARW-96B

Particle counter ARW-96B with backlit 2.0” TFT LCD color display for fast, easy and accurate readings of fine dust concentration in two measurement levels (PM2.5/PM10).

The instrument also has the detection of ambient temperature and humidity. The ideal solution for carrying out an air quality control in any environment.



Main features ARW-96B Air Pollution Meter

  • Equipped with a large 2.0" TFT 220*176 pixel color graphic LCD display for clear parameter reading
  • Double parameter, determination of the concentration of particles suspended in the air simultaneously in PM2.5 and PM10 values
  • Bluetooth interface for simple and fast data transfer to Smartphone or Tablet (Free downloadable "Application" available)
  • Unit of measurement expressed in weight/mass µg/m3
  • Additional indication of ambient temperature and humidity.
  • Date and time display
  • Colored graphic bar indicating pollution level





Technical specifications Fine dust meter ARW-96B
Measurement channels 2.5,10μm (PM2.5/PM10)
Cobncentration level PM2.5: 0~500ug/m3 | PM10: 0~500ug/m3
Measurement method The determination of the concentration of particles suspended in the air by the weight method (PM2.5 / PM10)
Resolution 1ug/m3
Air temperatures and humidity
  Range Resolution
Temperature 0 ~ 50 °C/32 ~ 122 °F 0.1°C (±1 °C/2 °F)
Relative humidity 0 ~ 100%RH 0.1%RH (±5%RH @0 to 20%RH | 80 to 100%RH | ±3.5%RH @20 to 80%RH)
Data memory 5000 data
Display Backlit graphic LCD, 2.0'' TFT 220*176 pixels
Functions Date and time shown on the display
Operative conditions 0 -50°C (32 -122°F) <80% RH | max altitude 2000m (7000ft)
Power supply 3.7V rechargeable Li Battery
Dimensions 185mm x 55mm x 38mm
Weight 139g





Bluetooth interface for simple and fast data transfer to Smartphone or Tablet (Free downloadable "Application" available)





Downloads
