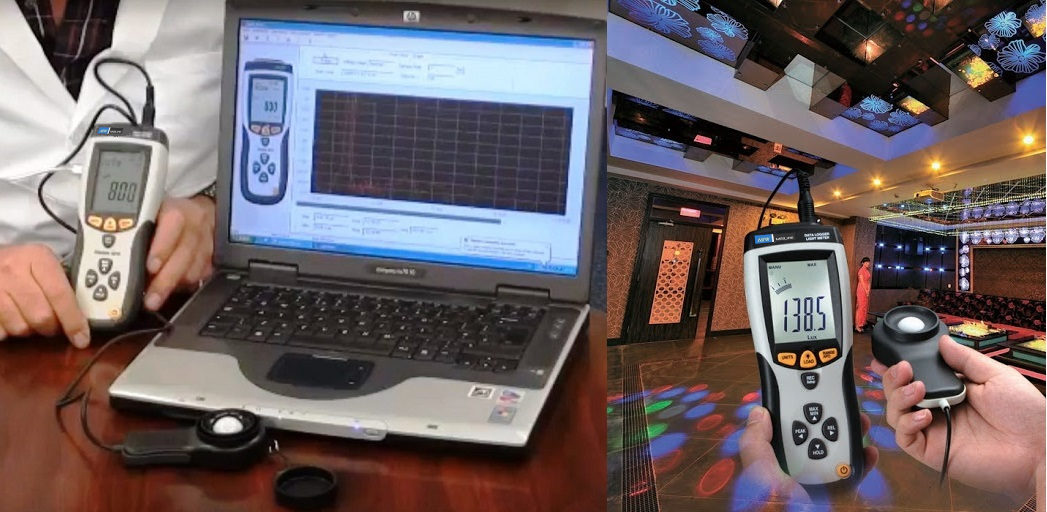

Professional digital portable luxmeter equipped with an external sensor capable of detecting brightness up to 400,000 Lux. The visualization takes place through a large backlit display for numerical visualization and with an analogical bar of the measured value. Particularly suitable for environmental control in the workplace, in industrial applications, in public and private environments, in the photographic sector, in floriculture and in various professional fields for determining the degree of brightness of any environment. Equipped with a USB data output for connection to a PC and a software for downloading and managing data.
This instrument is equipped with a photo diode sensor with sensitivity characteristics compliant with the C.I.E (International Commission On Illumination)
Technical specifications Light meter ARW-8809A |
|
Measuring Range |
400.000 Lux |
Accuracy |
5% - +/-10dgt (<10.000Lux) +/-10% - +/-10dgt (>10.000Lux) |
Rsolution |
max. 0.1Lux (up to 400 Lux) « Display 4000 points |
Sampling time |
1,5 sec. |
Instrument dimensions |
203x55x70mm |
Sensor dimensions |
115x60x27mm |
Weight |
280gr |
Display capacity |
4000 points |
Value detection |
max/min and "Hols" reading lock |
Automatic Range selection |
|
Peak Hold Function |
|
Auto power off function |
|
Low battery indication |
|
FC/Lux selectable unit of measurement |
|
Memory capacity 99 data, using a PC, real - time acquisition function |
