High frequency magnetic field detector ARW-92

The ARW-92 electromagnetic field meter is used to detect the presence of electromagnetic pollution generated by artificial sources, equipped with an omnidirectional isotropic probe for measurements of electric field, magnetic field and power density.

‹ ›

Product Code: 220121452
Availability: In Stock

Equipped with a large backlit display with visualization of the instantaneous value, the maximum measured value and the average one
Features a broadband measurement range to monitor radiation high frequency, between 50 MHz and up to 3.5 GHz
The unit of measurement and the type of measurement were chosen to express the electric field, the magnetic field and the power density (V/m / A/m / W/m2)
Three-axis measuring sensor (isotropic) with measuring mode indication

Further information

Electromagnetic Fields Detector ARW-92 (High frequency)

Electromagnetic fields interact with the human body and in some cases can be harmful. In this regard, with the Ministerial Decree n.381 of 09/10/1998, limit values for exposure of the population compatible with human health have been set.

From this point of view of prevention and safety, we offer you an instrument capable of measuring electromagnetic fields with a passband from 50MHz to 3.5 GHz. The small-sized device is equipped with an integrated Isotropic probe, capable of measuring electric fields of 38mV /m to 110V/m with power densities from 3.8μW/m2 to 320mW/m2.
Suitable for measuring electromagnetic fields generated by artificial sources, such as: mobile phone stations, cordless phones, radars, microwave ovens, TV antennas, radio stations, wireless sources (CW,TDMA,GSM,DECT), spy equipment, bed bugs and any other source of high frequency pollution.

Main features of the ARW-92 electromagnetic field meter

Frequency range (wide band): 50MHz ÷ 3.5GHz
Measurement: three-dimensional isotropic (x-y-z)
Data memory: 99 values (only recallable from the instrument)
Compact and simple to use instrument
Measurement range: 38mV/m ÷ 110V/m 3.8μW/m2 ÷ 320mW/m2
Alarm and data memory functions with detection of min/max and average values
Unit of measurement: mV/m, V/m, μA/m, mA/m, μW/m2, mW/m2

Applications of the ARW-92 electromagnetic field meter

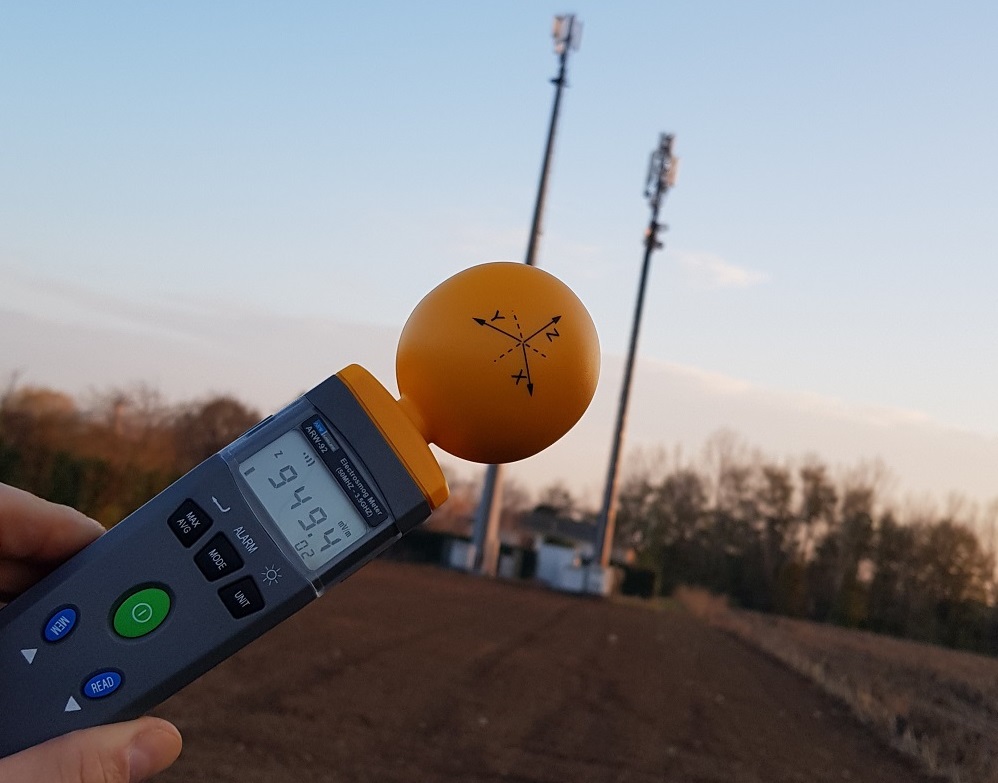

Mobile telephony and related transmission equipment/antennas
Radio transmission equipment (CW, TDMA, GSM, DECT)
Wireless LAN (Wi-Fi) transmission of equipment and installations
Spy radio equipment, bugs, etc.
Microwave ovens
Safety to protect yourself and the environment against EMF pollution

Technical specifications Electromagnetic field detector ARW-92
Sensor type	electric field (E)
Frequency range (wide band)	50MHz ÷ 3.5GHz
Measurement	three-dimensional isotropic
Measurement range	38mV/m ÷ 11V/m 3.8µW/m² ÷ 320mW/m²
Absolute error (@1V/m and 50MHz)	+/- 1.5dB
Frequency response	+/- 1.0dB (50MHz÷1.9GHz)
	+/- 2.4dB (1.9MHz÷3.5GHz)
Isotropic Deviation	Typical +/-1.0dB at 50MHz frequency
Notes: Unless otherwise specified, observe the following hypotheses: measurement by directing the probe towards the pointing source with the following environmental conditions; ambient temperature +23°C (+/-3°C), humidity 25%÷75%RH
Measurement method	three-axis (x-y-z)

Display resolution	0.1mV/m, 0.1µA/m, 0.001µW/m²
Setting time	typical 1sec. (0÷90% of the measured value)
Display update	400ms
Display	LCD 4 digit
Acoustic alarm	buzzer
Unit of measurement	mV/m, V/m, µA/m, mA/m, µW/m², mW/m²
Measured values	indication of the instantaneous value and storage of the maximum and average values (AVG) since the instrument was switched on
Average measurement time	4s ÷ 15min.
Alarm function	programmable threshold
Data memory	99 values (only recallable from the instrument)
Battery	9V
Autonomy	about 15 hours

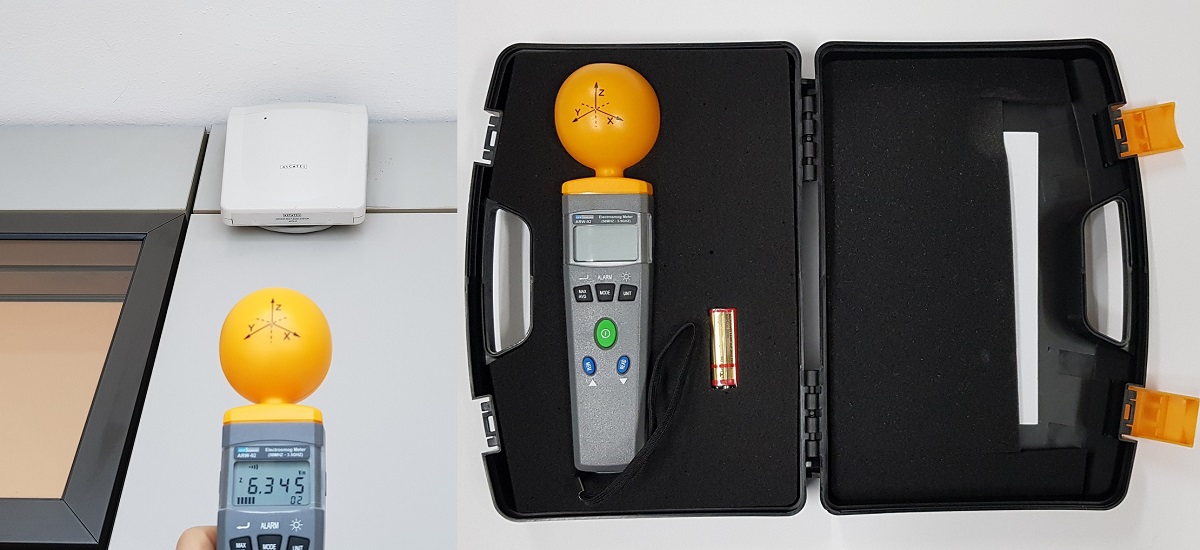

Supplied accessories	battery, case and user manual
