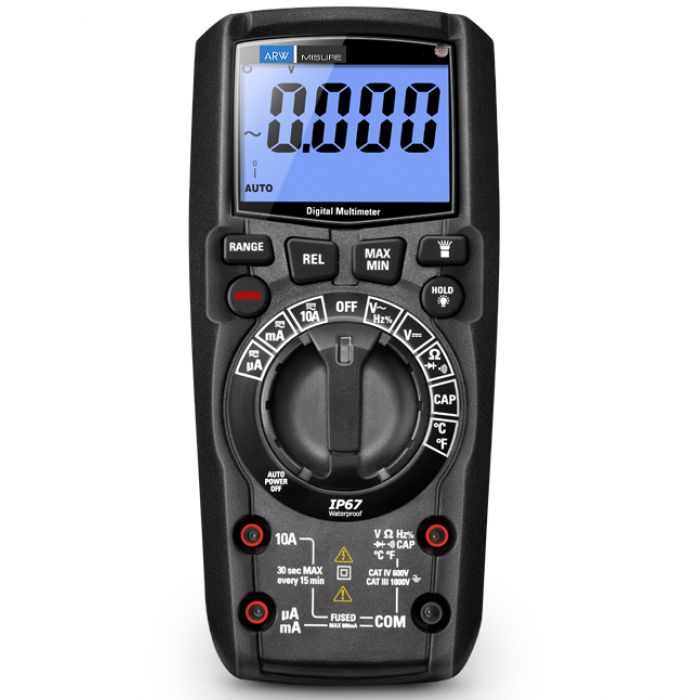

The ARW-965BT Professional Multimeter is a rugged, digital tester suitable for use in harsh industrial conditions. It complies with the requirements of CAT IV 600V which confirms the highest level of overvoltage resistance and is equipped with a Bluetooth interface with "Meterbox Pro" APP.
Digital multimeter ARW-965BT with Bluetooth connection
Product Code: 220122833
Availability: In Stock

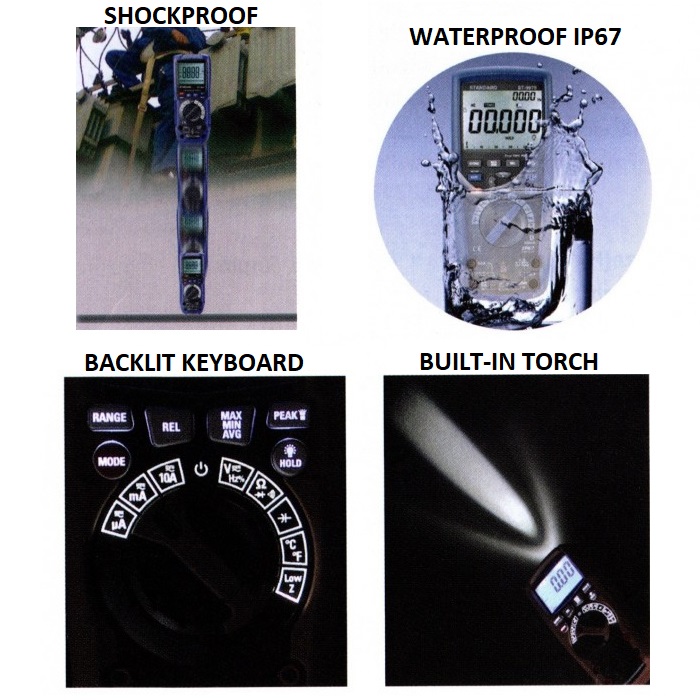

  • Equipped with a shock-resistant rubber case with protection degree IP 67

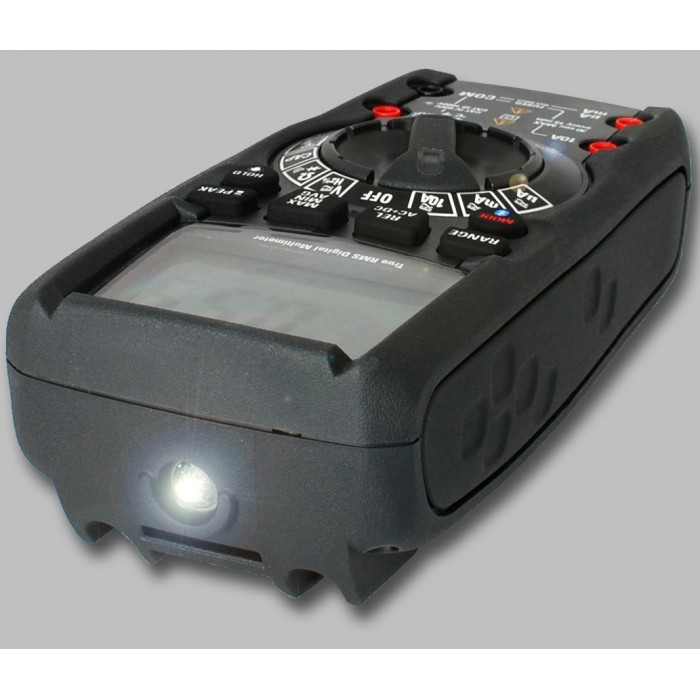

  • Equipped with a bright flashlight and backlighting of the display and keyboard
  • The instrument is ideal for use in difficult environmental conditions

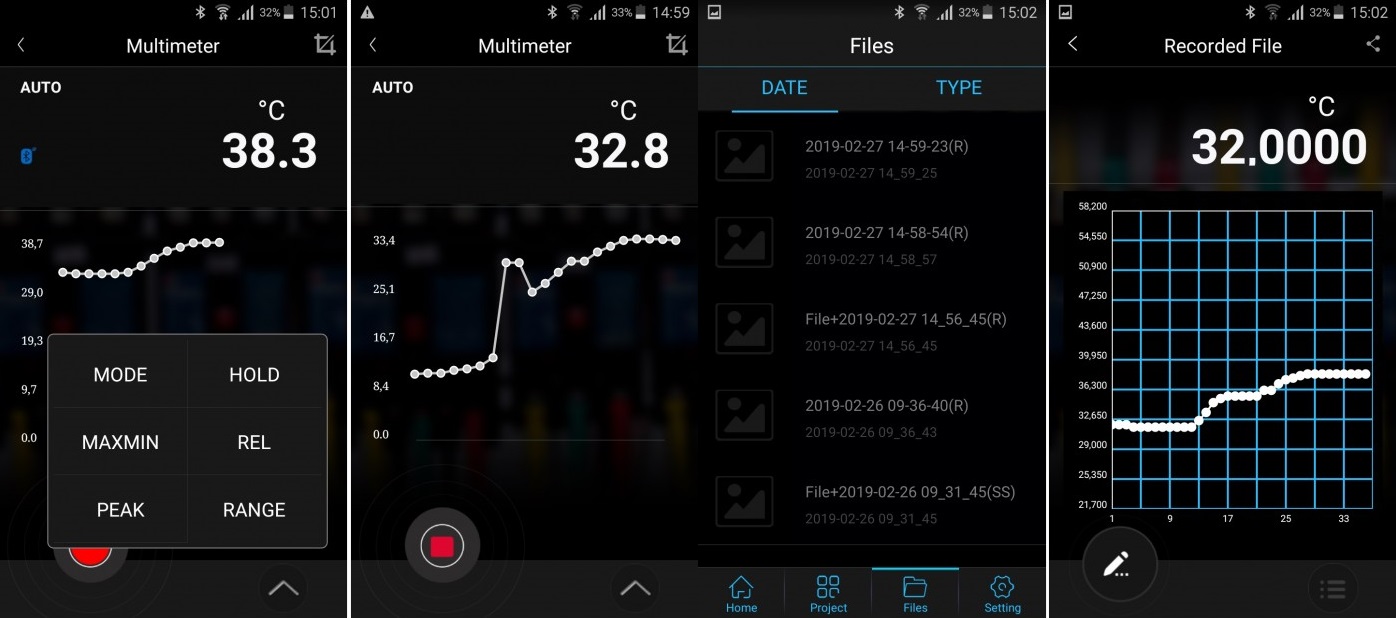

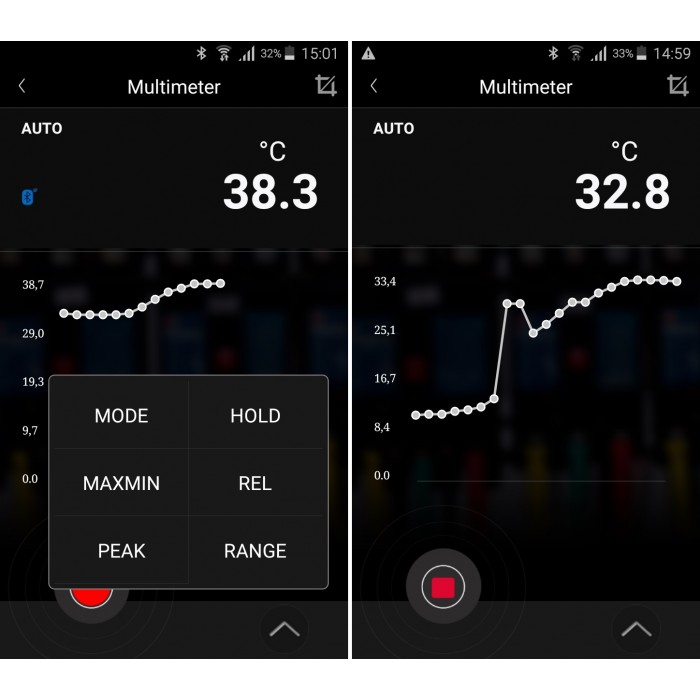

  • Bluetooth interface with the "Meterbox Pro" application that can be downloaded for free on your smartphone or tablet (Ios/Android).

Further information

Heavy-duty multimeter ARW-965BT with Bluetooth connection

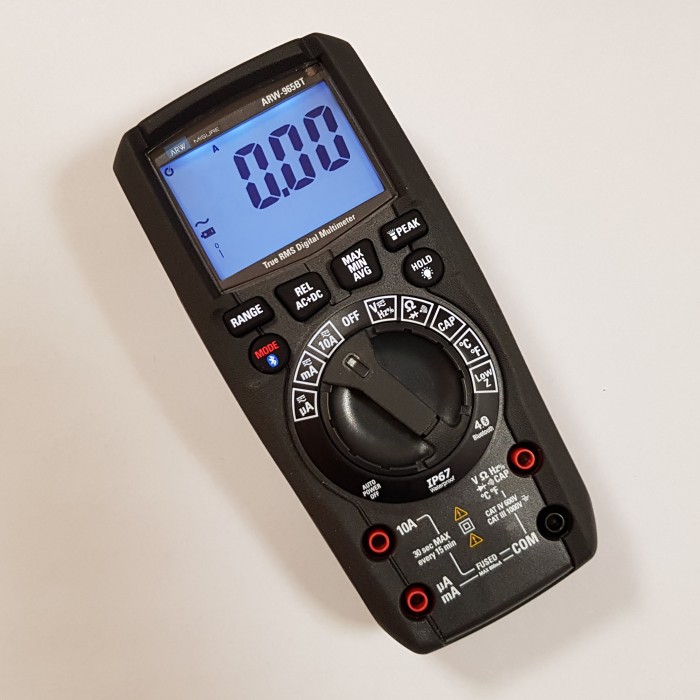

The ARW-965BT is a professional waterproof multimeter with a resolution up to 6000 display points. Meets CAT IV 600V requirements confirming the highest level of surge resistance.
It is a combination of accuracy, ease of use, safety and reliability. ARW 965BT is a digital tester suitable for use in harsh industrial conditions. "Heavy Duty".



Main features Digital Multimeter ARW-965BT

  • The instrument is equipped with a dustproof and watertight case according to IP67.​
  • Voltage input terminals have protection up to 1000V AC/DC with all other measurement inputs up to 600V AC/DC

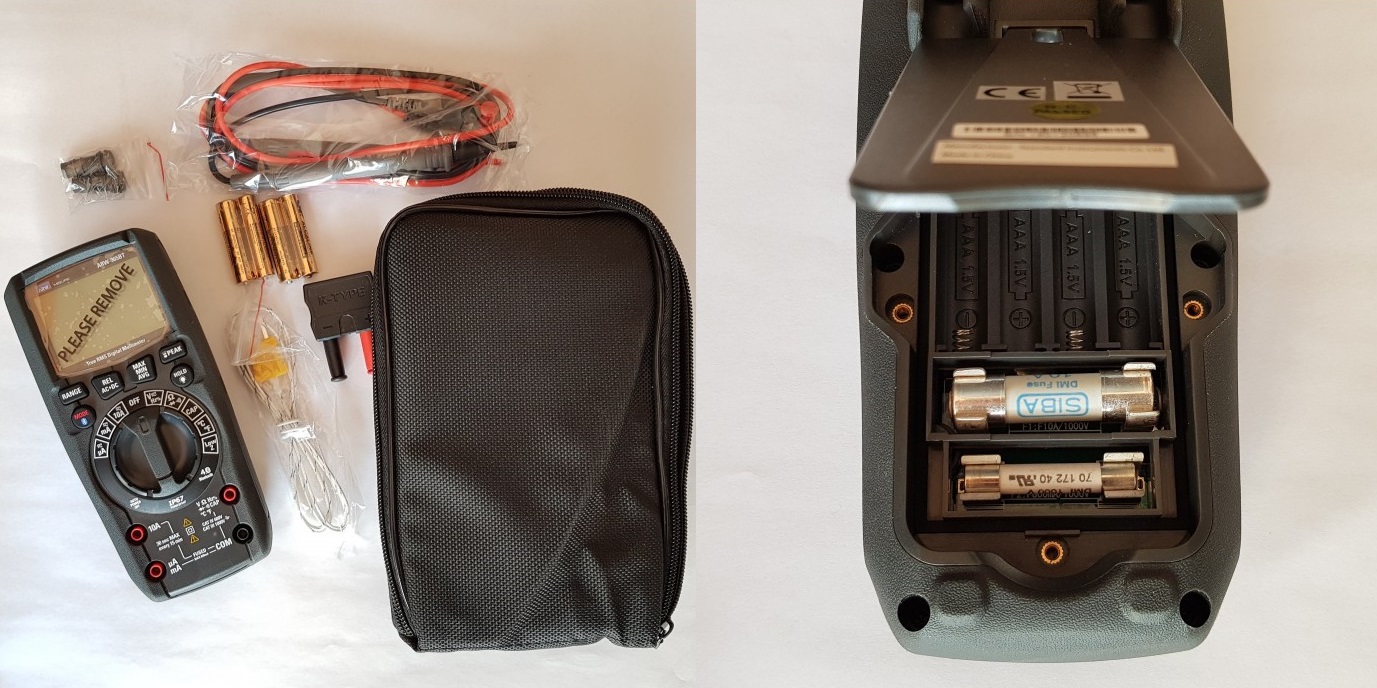

  • Current inputs are protected by 10A / 1000V and 800mA / 1000V fuses
  • Supplied with Bluetooth interface
  • Thanks to the shockproof protection that surrounds the instrument, there is greater safety of the measurements

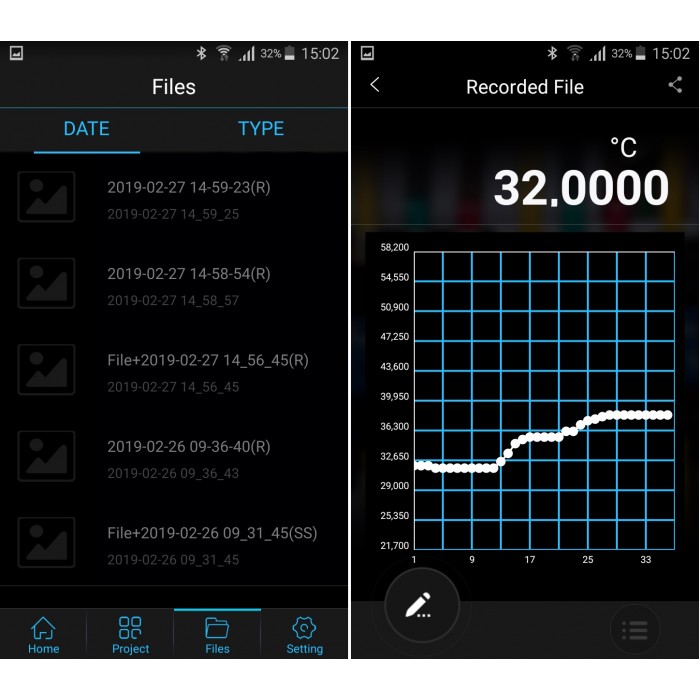

  • Application downloadable for free on your Smartphone or Tablet (APP Compatible Ios/Android)





Technical specifications Multimeter ARW-965BT

Display Count

6.000

Auto Range

*

True RMS

*

Amplitude (Hz)

45Hz-10kHZ

Duty Cycle 0.1~99.9%

*

Test diodes

*

Auto power off (15 min.)

*

Continuity Buzzer

*

Low battery indication (Low Battery ≤4.5V)

*

Data Hold/Relative Mode functions

*

MAX/MIN/AVG

*

AC+DC

*

Peak Value

*

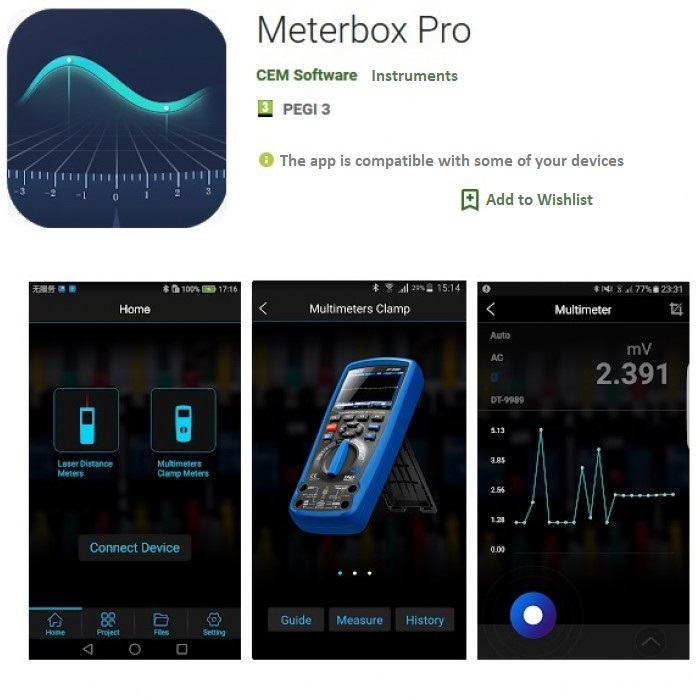

Bluetooth interface with "Meterbox Pro" APP

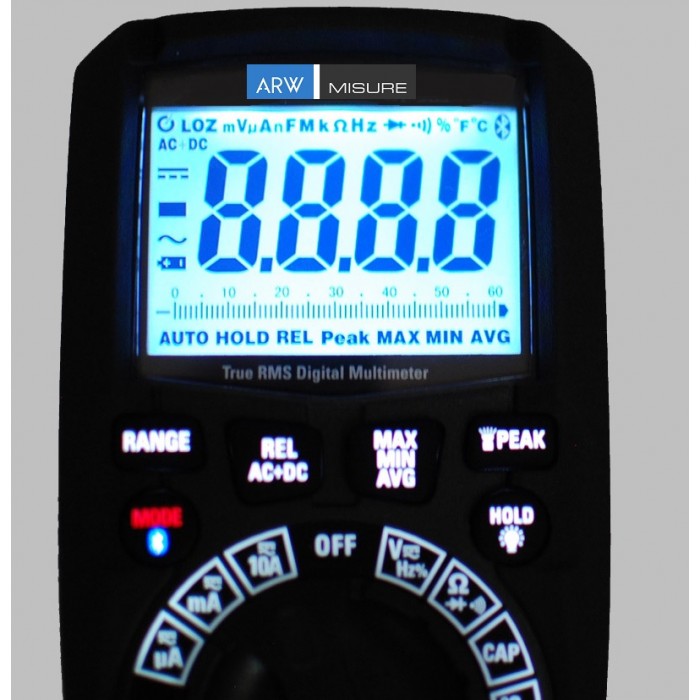

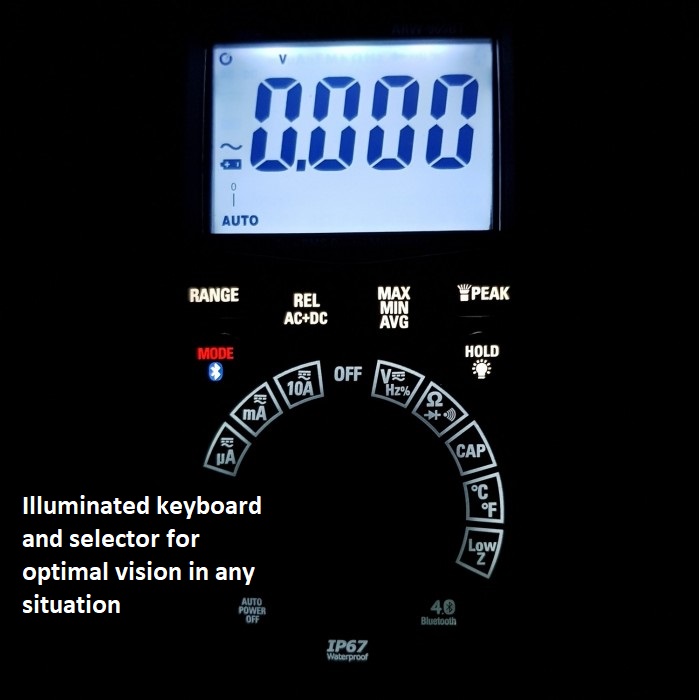

Backlit display and keyboard

*

Analog Graph Bar

61

Low input impedance for DCV/ACV measurements >3kΩ @ 600V MAX

*

Ingress protection

*

Input impedance for DCV around 10MΩ

*

IP67 Waterproof

*



Dimension (H x W x D): 170mm x 74mm x 45mm

Weight: 218g





Technical specifications

Measurement range

Accuracy

DC voltage

600mV/6V/60V/600V/1000V

±(0.1%+2)

AC voltage

600mV/6V/60V/600V/1000V

±(0.8%+10)

DC current

600μA/6000μA/60mA/600mA/6A/10A

±(0.5%+10)

AC current

600μA/6000μA/60mA/600mA/6A/10A

±(0.8%+3)

Resistence

600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ

±(0.8%+10)

Capacity

60nF/600nF/6μF/60μF/600μF/6000μF

±(3.0%+10)

Frequency

10Hz-10KHz

±(0.01%+5)

Temperature(ºC)

-20ºC~760ºC

±(1.0%+3ºC)

Temperature(ºF)

-4ºF~1400ºF

±(1.8%+4ºF)
