Current Clamp RMS/KW ARW-3352

Home » Measurement instruments » Electrical Measurements » Digital Clamp Meter » Current Clamp RMS/KW ARW-3352
Professional high resolution caliper with 40,000 display points equipped with True RMs function and kW/kVA power measurement. Built according to EN 61010-1 standards with CAT III 1000V / CAT IV 600V protection degree.
Current Clamp RMS/KW ARW-3352
Product Code: 220122234
Availability: In Stock
  • The clamp is equipped with a large LCD display with analog and backlit bar graph for a clear and quick display of parameters.
  • Make true RMS AC/DC voltage and current measurements.
  • Designed according to EN 61010-1 standards with CAT III 1000V / CAT IV 600V protection rating.
295.00€
Ex Tax: 295.00€

Further information

RMS/KW Current Clamp Meter ARW-3352

The ARW-3352 Current Clamp Meter is a professional instrument with kW/kVA power measurement equipped with a large 40,000-point backlit display and made according to EN 610101-1 CATIV 600V/CATIII 1000V standards.



Main features ARW-3352 current clamp

  • True RMS AC measurement
  • 40,000- points display
  • kW/kVA power measurement
  • Electronic overload protection
  • “K” thermocouple probe input
  • Max/Min function. and Data Hold
  • Analog bar graph
  • Inrush current function, function inrush current
  • Jaw opening 55mm (2.16”)
  • NCV detection led (No contact voltage detector)
  • Backlit display
  • Zero function
  • AC/DC current
  • Auto shut off
  •  Low battery indicator
  • Dimensions: 295x100x46mm
  • Weight: 537gr.

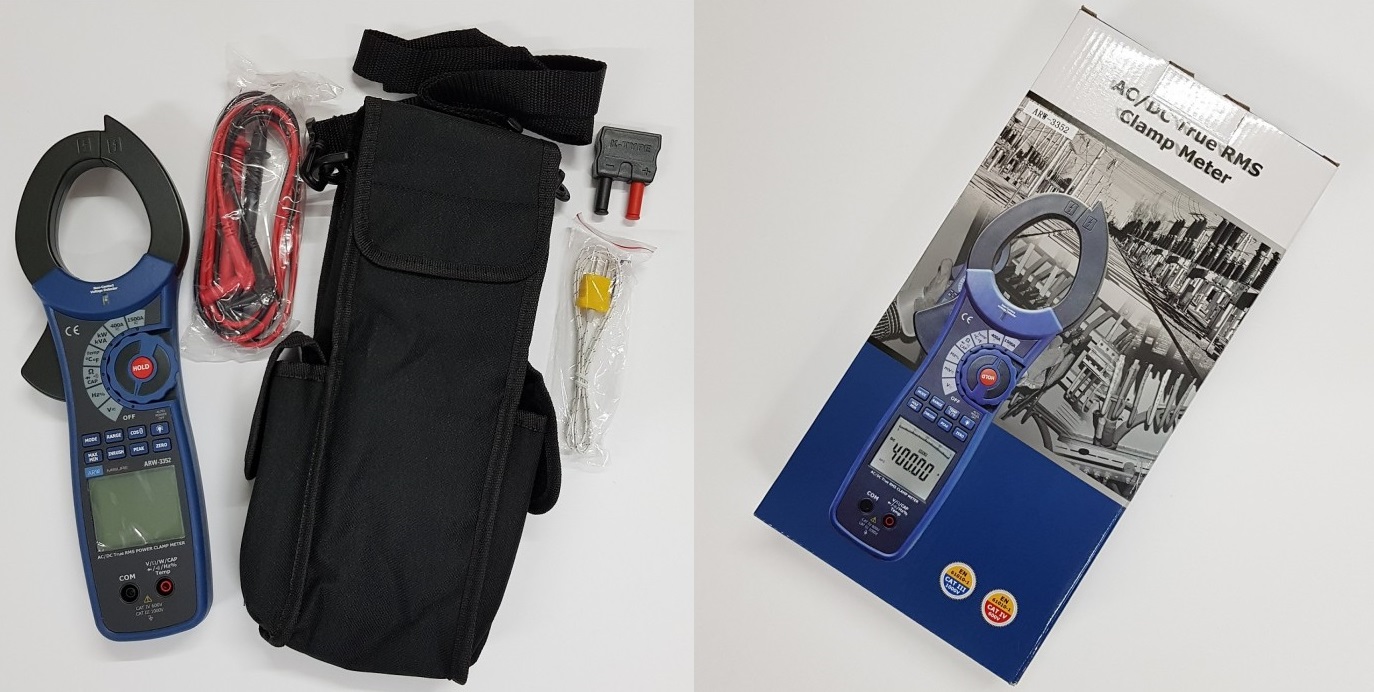

Delivery kit: vinyl case, general purpose wire temperature probe (max. 250°C), test leads, batteries, user manual.







Technical specifications Current Clamp ARW-3352

Function

Range

Accuracy

Resolution

AC current

1500A

>±(2.8%+5d)

10mA

DC current

1500A

±(2.0%+4d)

10mA

AC voltage

750V

±(0.5%+5d)

0.01mV

DC voltage

1000V

±(0.1%+5d)

0.01mV

AC kW/kVA

900.0kW

±(2.5%+10d)



(AC kW/kVA 0-600V, 0-1500A, 50/60Hz)

DC kW/kVA

900.0kW

±(2.5%+10d)



(DC kW/kVA 0-600V, 0-1500A, 50/60Hz)

Power factor

0.3 .. 1

±(2.5%+10d)

0.01Ω

Resistence

40.000MΩ

±(0.5%+4d)

0.01Ω

Capacity

40.00mF

±(3.0%+5d)

0.01nF

Frequency

40.000MHz

±(1.2%+2d)

0.001Hz

Inrush Current

1500A

±(1.5%+2d)

0.01MHz

Temperature

1000°C/1832°F

±(1.0%+1°C/1°F)

1°C/°F

Continuity Check

Acoustic Buzzer at 50Ω

Diode test

Test current 0.3mA
